Axibase Time Series Database

Axibase Time Series Database represents a new class of distributed systems designed to store and analyze time series data at scale.

Unlike traditional databases, ATSD makes it easy to consolidate timestamped data from multiple sources in a single repository.

Once you have normalized, clean data in one place, ATSD can help you build analytics and monitoring applications
by providing extensive APIs, best-in-class Visualization, integrated Rule Engine, and Forecasting capabilities.

Streaming Data

Stream high-frequency data into ATSD via TCP, UDP, and HTTP protocols using text, JSON, nmon, and CSV formats.

$echo series e:srv-1 m:cpu_b=12.2 > /dev/tcp/atsd/8081
$echo "csv p:iso-parser" | cat - data.csv > /dev/tcp/atsd/8081

Batch Data

Upload CSV files directly into the database for bulk import. Use network API to upload nmon archives with wget/curl or telnet.

Query data on schedule from web services and network devices using industry-standard protocols and formats: JMX, SNMP, CSV/TSV, SOAP, and JSON.

Offload and historize data from any relational database supporting JDBC protocol.

Rule Engine

Create alerting rules in the built-in rule engine with time/count-based sliding windows, aggregation and forecasting functions. Deliver alerts to enterprise consoles, email, ticketing systems or execute system commands.

Rich Schema

ATSD is not limited to numeric data. You can store configuration files, properties and log messages in the database as well.

ATSD supports tags everywhere – you can tag entities, entity groups, metrics, and data itself for correlation in the rule-engine and analytical queries.

List of aggregators includes COUNTER, DELTA, MAX/MIN_VALUE_TIME and THRESHOLD functions.

Extensive API

ATSD API v1 implements RESTful API allowing you to create, edit, update, and delete meta-data such as device properties and metric settings as well as to query series, properties, and messages. Implemented APIs: Network API, Data API and Meta API.

Query Language

SQL-like query language for interactive data analysis by data scientists, analysts, and report developers.

SELECT entity, datetime, AVG(cpu_busy.VALUE), MAX(disk_used.VALUE), tags.*
   FROM cpu_busy
   JOIN USING entity disk_used
WHERE datetime BETWEEN now - 1*DAY AND now AND entity LIKE 'NURSWG*'
   GROUP BY entity, tags, PERIOD(1 HOUR)
   HAVING AVG(cpu_busy.VALUE) > 20
ORDER BY entity, datetime
   LIMIT 100

Non-parametric Forecasting

Built-in Holt-Winters and ARIMA forecasts allow you to quickly compute expected system state and make proactive decisions if observed values are outside of confidence interval. In autopilot mode ATSD is capable of identifying best parameters for each algorithm which greatly improves forecast accuracy.

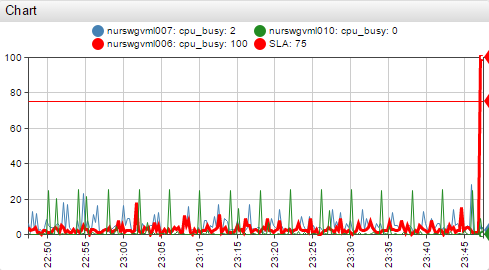

time_chart1-compressor

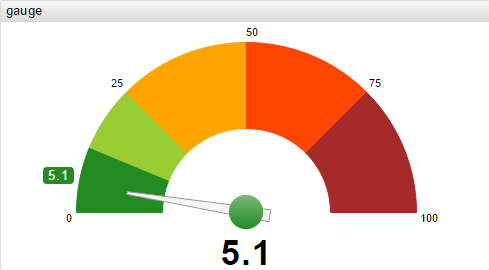

gauge-compressor

histogram-compressor

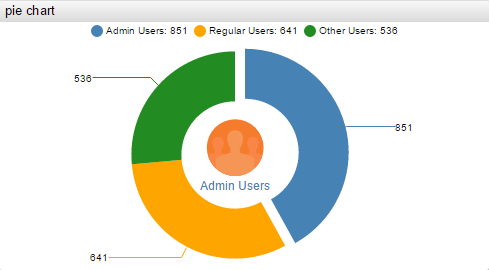

pie_chart1-compressor

treemap-compressor

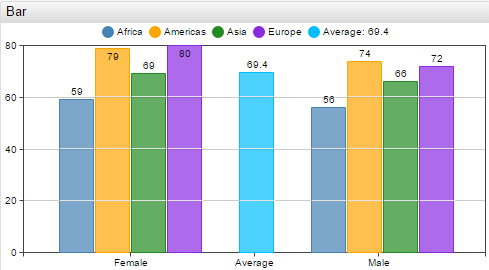

bar_chart1-compressor
