Graph Widget

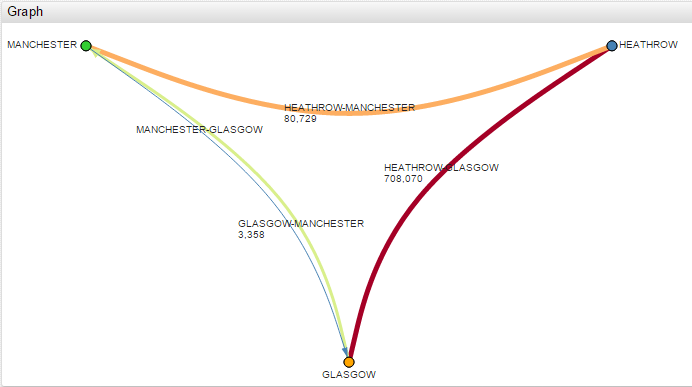

The graph widget displays the topology and relationships of servers, virtual machines, and managers with their corresponding status.
Chart Lab: View
Structure
The structure of the graph is given by the description of its vertices and edges. The [node] tag is used to describe each vertex, and the hierarchy of vertices is determined by the parent parameter, which sets the predecessor. The [link] tag is used to describe the edges. Adjacent edges, with vertices, are determined by the [node] tag.
Time Series can be linked to edges or vertices by indicating the alias in the series parameter of [link] or [node] tags. Also, you can list the loaded edges or vertices in the links or nodes of the [series] parameter.

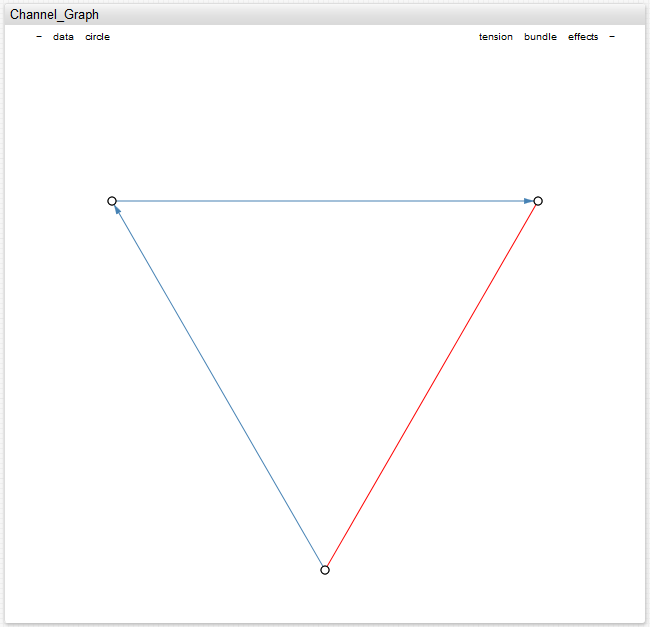

Example:
[widget] type = graph title = Channel_Graph alert-expression = value > 100000 alert-style = stroke: red bundle = false circle = false tension = 0 [node] id = queue_1 [node] id = queue_2 [node] id = queue_3 [link] id = channel_1 nodes = queue_1-queue_2 series = ch1 [link] id = channel_2 nodes = queue_2->queue_3 [link] id = channel_3 nodes = queue_1<-queue_3 [series] entity = gr01 metric = message_count links = channel_2 [tag] name = channel_name value = channel2 [series] alias = ch1 entity = gr01 metric = message_count [tag] name = channel_name value = channel1 |
Hierarchical Mode
To activate the hierarchical mode use the mode setting:
mode = hierarchy |
Alert-expression
In the event of an alert-expression response on the time series of the vertex or edge to which the time series is tied. Value of alert-style can be either string or script. If alert-style is script, the variable alert is available, and it is equal to the value that the alert returns. The following styles are applied (in a specified order) in the parameters below:
- [widget] alert-style
- [widget] node(link)-alert-style
- [link(node)] alert-style
- [series] alert-style
- [series] link(node)-alert-style
For example:
link-alert-style = if (alert > 99) return 'stroke-width:3px'; |
node-alert-style = if (alert > 99) return 'fill:red'; |

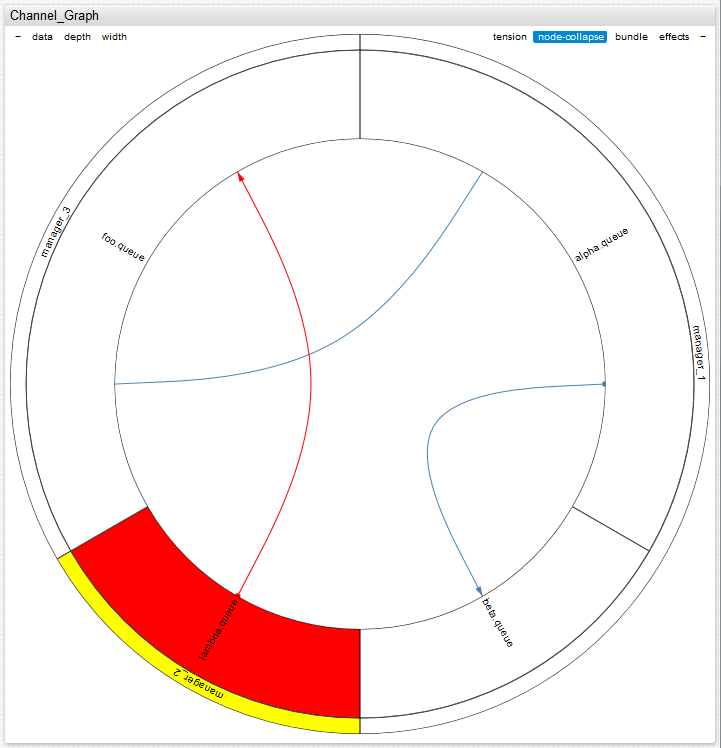

Example:
[widget] type = graph title = Channel_Graph alert-expression = value > 100000 node-alert-style = fill: red link-alert-style = stroke: red bundle = false mode = hierarchy [node] id = manager_1 [node] id = manager_2 alert-style = fill: yellow [node] id = manager_3 [node] id = alpha.queue parent = manager_1 [node] id = beta.queue parent = manager_1 [node] id = lambda.queue parent = manager_2 [node] id = foo.queue parent = manager_3 [link] nodes = alpha.queue - foo.queue [link] nodes = lambda.queue -> foo.queue [link] nodes = beta.queue <- alpha.queue [series] entity = gr02 metric = message_count links = lambda.queue - foo.queue nodes = lambda.queue, manager_2 [tag] name = channel_name value = THE.BEST.CH [series] entity = gr02 metric = message_count links = alpha.queue - foo.queue [tag] name = channel_name value = ALPHA.FOO.CH [series] entity = gr02 metric = message_count links = alpha.queue - beta.queue nodes = beta.queue [tag] name = channel_name value = ALPHA.BETA.CH |
Thresholds
Thresholds for time series tied to vertices or edges are set using the link-threshold or node-threshold parameters under the [widget] tag. In this case, color and width parameters are applied to the edge and vertices based on link-widths and link-colors (node-radiuses and node-colors) under the [widget] tag.
Styles of alert-expression are superimposed over the styles defined by thresholds.

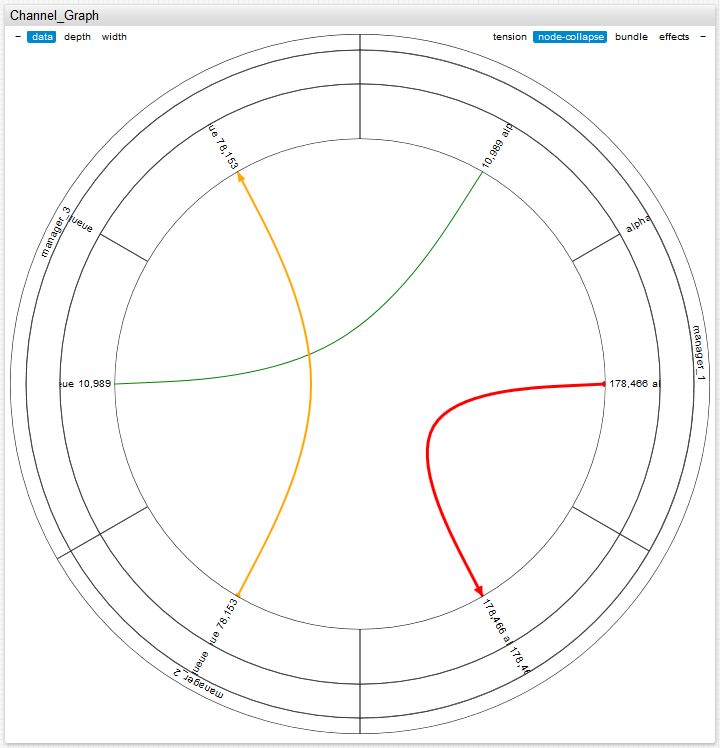

Example:
[widget] mode = hierarchy type = graph title = Channel_Graph bundle = false data = true depth = 3 max-ring-width = .3 link-thresholds = 1000 link-thresholds = Math.max(percentile(25), 50000) link-thresholds = percentile(90) link-widths = 1, 1, 2, 3 link-colors = blue, green, orange, red [node] id = manager_1 [node] id = manager_2 alert-style = fill: yellow [node] id = manager_3 [node] id = alpha.queue parent = manager_1 [node] id = beta.queue parent = manager_1 [node] id = lambda.queue parent = manager_2 [node] id = foo.queue parent = manager_3 [link] nodes = alpha.queue - foo.queue [link] nodes = lambda.queue -> foo.queue [link] nodes = beta.queue <- alpha.queue [series] entity = gr02 metric = message_count links = lambda.queue - foo.queue [tag] name = channel_name value = THE.BEST.CH [series] entity = gr02 metric = message_count links = alpha.queue - foo.queue [tag] name = channel_name value = ALPHA.FOO.CH [series] entity = gr02 metric = message_count links = alpha.queue - beta.queue nodes = beta.queue [tag] name = channel_name value = ALPHA.BETA.CH |
Settings
[widget] settings:
| Setting | Description |
|---|---|
mode | Determines the overall look of the widget, possible values: hierarchy or non-hierarchy (non-hierarchy by default). |
layout | Form of the widget in non-hierarchy mode, possible values: circle or rectangle (circle by default). |
depth | Depth of the displayed vertex hierarchy from 1 to the maximum depth of the vertex hierarchy plus 1 (final level corresponds to edges) (maximal dept of the hierarchy be default). |
tension | The degree curvature of the edges; corresponds to the parameter C in the formula for the cardinal spline; varies from 0 to 1 (0 corresponds to straight edges) (0.9 be default). |
bundled | Hierarchical contraction of edges (Danny Holten algorithm) (true by default). |
effects | Animation when changing the geometry of the graph (false by default). |
duration | The duration of the transaction when changing the geometry of the graph in milliseconds (1000 by default). |
min-ring-width | The minimum allowed width of the vertex ring. The value is from 0 to a maximum permissible value of the ring width (0.3 by default). |
max-ring-width | The maximum allowed width of the vertex ring from the current minimal value of the ring width to (0.5 by default). |
arrows | Arrows on the directed edges (false by default). |
node-connect | Connect vertices on the perimeter (true by default). |
data | Information about the last time series value next to the image of the corresponding vertex (false by default). |
node-collapse | Collapse vertex sectors when clicked (true by default). |
node-alert-style | Style of vertices, in the event of an alert-expression being triggered tied to the time series. |
link-alert-style | Style of edges in the event of an alert-expression being triggered and tied to the time series. |
link-thresholds | Threshold for time series attached to the edges. Can use javascript and percentile functions. |
link-colors | Color to indicate the threshold of time series. It is attached to the edges and separated by commas. |
link-widths | Width to indicate the thresholds of the time series tied to the edges and separated by commas or spaces. |
node-thresholds | Threshold for time series tied to vertices. Can use javascript, percentile functions, or can be set as an array. |
node-colors | Color to indicate the threshold of time series that are bound to vertices and separated by commas. |
node-radiuses | Radii of the lighting for the display of the time series thresholds linked to the vertices and separated by commas or spaces. |
node-radius | Radius of the vertex in pixels (not valid in hierarchy mode). |
padding | Offset from the edge of the container in pixels. |
link-animate | Animation of directed vertices (false by default). |
disconnected-node-display | Show vertices without edges, values: true or false (true by default). |
node-labels | Display vertex labels; possible values: true or false. |
link-labels | Display edge labels; possible values: true or false. |
link-data | Series last value next to the link-label. |
link-color-range | Color scheme for link-threshold. |
link-label-zoom-threshold | Parameter value is a value of scale when labels appear based on edge threshold; value <1 - labels disappear on zoom out, value >1 – labels appear on zoom in. |
node-label-zoom-threshold | Parameter value is a value of scale when labels appear based on vertex threshold; value <1 - labels disappear on zoom out, value >1 – labels appear on zoom in. |
auto-padding | Add padding if labels overflow container, possible values: true or false (true by default). |
link-width-order | Sort links according to their width, possible values: top, bottom or undefined (undefined by default). |
Vertex settings, [node]:
| Setting | Description |
|---|---|
id | Unique name of the vertex, a required setting. |
parent | id of parent vertex. |
series | Alias of the time series associated with the vertex. |
alert-style | Vertex style, in the event of an alert-expression for the associated time series triggering. |
tooltip | Add custom string to tooltip. |
label | Text on label; element id by default. |
You can use [properties] to specify any values divided by an equal sign (if the value contains an equal sign = or \, then they should be written with a backslash: \= or \\).
Chart Lab Example for [properties]: View
Edge settings, [link]:
| Setting | Description |
|---|---|
id | Unique edge name. |
nodes | Vertices connected by an edge; id of vertices, separated by a comma or a hyphen for undirected edges, -} or {- for directed edges; if vertex id contains a hyphen, it must be shielded using the “” symbol. |
series | Alias of time series associated with the edge. |
alert-style | Edge style, in the event of an alert-expression of the associated time series triggering. |
tooltip | Add custom string to tooltip. |
label | Text on label; element id by default. |
You can use [properties] to specify any values divided by an equal sign (if the value contains an equal sign = or \, then they should be written with a backslash: \= or \\).
Chart Lab Example for [properties]: View
[series] settings, associating time series to the graph:
| Setting | Description |
|---|---|
nodes | List of vertices associated with this series; when the vertex id contains a hyphen, it must be shielded with symbol. |
links | List of edges associated with this series is defined by an id or edge id of the corresponding vertices with a hyphen; when the edge id contains a hyphen, it must be shielded with a symbol. |
link-alerts-style | Edge style to which a time series is bound in the event of an alert-expression being triggered. |
node-alert-style | Vertex style to which a time series is bound in the event of an alert-expression being triggered. |
It is possible to create an expanded mouse over tool-tip containing contextual information. Settings are used under the [series] tag. It is possible to prescribe the [properties] tag which specifies any values divided by an equal sign (if the value contains an equal sign = or \, then they should be written with a backslash – \ = \\). They are displayed in a table within the tool-tip. Also in these tags, you can use the context setting value which is displayed in the tool-tip before the [properties] tool-tip table. Within the context setting, you can create a table using standard html parameters: table class, tbody, tr, td.
Controls
The graph appearance can be adjusted by the controls located in the top corners of the widget:
| Setting | Description |
|---|---|
data | Show or hide information about the last value of a time series next to the corresponding image of the vertices (by default, the information is hidden). |
depth | Set the depth of the displayed vertex hierarchy; allows a value of 1 to a maximum height of the vertex tree plus 1 (the last level corresponds to the edges); by default, the depth is equal to the height of the vertex tree displayed. |
width | Maximum and minimum allowed width of the vertex ring is the percent from the radius of the circle (by default, a minimum 30%, maximum 50%). |
tension | The degree of edge curvature. Corresponds to the parameter C in the formula for the cardinal spline. Varies from 0 to 1 (0 corresponds to direct edges) (default value is 0.9). |
bundle | Hierarchical contraction of edges (the Danny Holten algorithm); used by default. |
effects | Animation when changing the geometry of the graph; used by default. |
node-collapse | Collapse sector peaks when clicked; true by default. |
link-animate | Animation of directed edges; false by default. |
