Metric: rename

Description

Renames the specified metric while retaining its identifier, fields, tags, and the underlying time series data.

The following naming rules apply to the new metric name:

  • Non-printable characters with ASCII hexadecimal codes %x00-%x20 and %x7F, such as space and tab, are not allowed.
  • The new metric name must not match an existing metric name.
  • The new metric name is converted to lower case when stored.

Series commands with the old metric name, received after the renaming is completed, are stored under the old metric name with a new identifier.

Request

Method Path Content-Type Header
POST /api/v1/metrics/{name}/rename application/json

Path Parameters

Name Description
name [Required] Current metric name.

Fields

Name Type Description
name string [Required] New metric name. Must not exist in the database.

Response

Fields

None.

Example

Request

URI

POST /api/v1/metrics/cpu_busy/rename

Payload

{
  "name": "cpu_total_busy"
}

curl

curl https://atsd_hostname:8443/api/v1/metrics/cpu_busy/rename \
  --insecure --include --user {username}:{password} \
  --header "Content-Type: application/json" \
  --data '{"name":"cpu_total_busy"}'

Response

None.

Screenshots

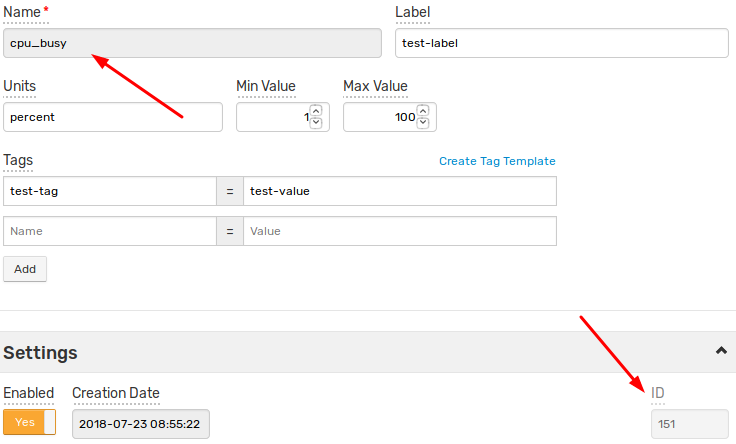

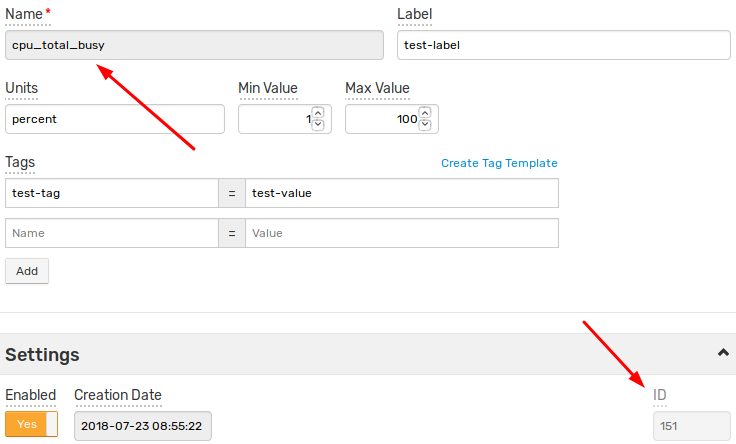

Metric Editor page before and after the renaming operation:

Metric name is

Metric name is
