Versioning

Versioning enables tracking of time-series value changes for the purpose of audit trail and data reconciliation.

The capability is required for vertical applications such as Energy Data Management.

Versioning Fields

Once enabled, the database tracks changes made to stored values with the following versioning fields:

Field Name Description
Version Time Timestamp when insert command is received. Set automatically by ATSD server with millisecond precision.
Version Source User-defined field to track sources (origins) of change events such as username, device id, or IP address.
Set to user:{username} by default for changes made through the web interface.
Version Status User-defined field to classify change events.
Set to invalid for NaN and out of range values by default if Invalid Value Action = SET_VERSION_STATUS

The ability to specify custom fields with server-side business logic such as change locking, is under development.

Enabling Versioning

Versioning is disabled by default.

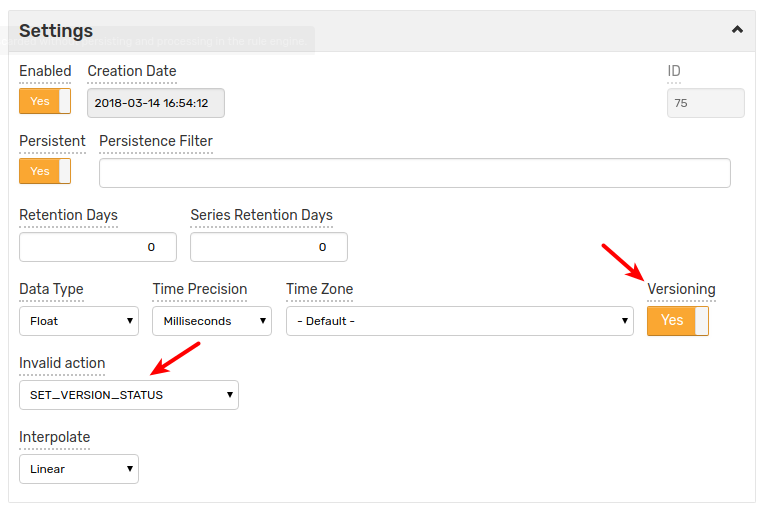

It can be enabled for specific metrics via Meta API, by setting the Versioning drop-down to Yes in the multi-record editor, or by enabling Versioning in the Metric Editor.

In addition, Invalid Value Action can be set to SET_VERSION_STATUS to initialize the Version Status field with an invalid value if the inserted sample is not a valid number or is outside of the specified minimum and maximum bounds.

Inserting Version Fields

To insert versioning fields along with the modified value, use the reserved tags:

  • $version_source
  • $version_status

These tags are converted to the corresponding versioning fields. Note that $version_status tag overrides invalid value set by SET_VERSION_STATUS trigger.

Options to insert versioned series:

Network Commands

To insert versioned samples, use the series command with the version tags:

series e:{entity} m:{metric}={number} t:$version_status={status} t:$version_source={source} d:{iso-date}

Note:

  • Request to insert versioned value for a non-versioned metric causes a validation error.
  • If the command refers to a new metric, such metric automatically created with Versioning set to Yes.

Example:

series e:e-vers m:m-vers=13 t:$version_status=OK t:$version_source=collector-1 d:2018-03-20T15:25:40Z

Data Entry Form

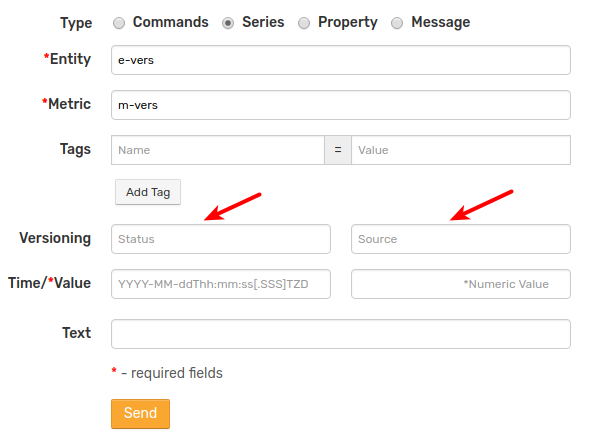

Versioned samples can be added by opening Data > Data Entry > Series form and specifying versioning tags:

Note: Metric field must reference an existing metric with Versioning = Yes

CSV Parser using Default Tags

To apply the same versioning fields to all records in a CSV file, specify them in the Default Tags field in the CSV parser or on the CSV File Upload page.

$version_status={status}
$version_source={source}

Note:

  • Request to insert versioned value for a non-versioned metric causes a validation error.
  • If the command refers to a new metric, such metric is automatically created with Versioning set to Yes.

CSV Parser using Renamed Columns

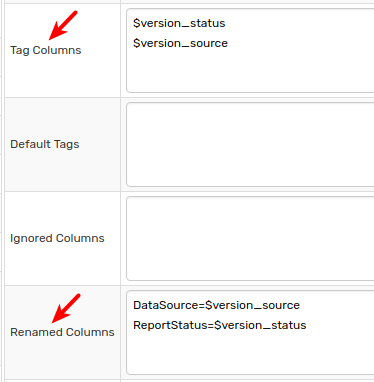

To extract versioning fields from CSV content, add the version tags to the Tag Columns field and specify mappings between the original column names and version tag names in the Renamed Columns field.

Note:

  • Request to insert versioned value for a non-versioned metric causes a validation error.
  • If the command refers to a new metric, such metric is automatically created with Versioning set to Yes.

View Versions

Version history can be retrieved on the Ad-hoc Export page or via a scheduled Export Job.

Ad-hoc Export page

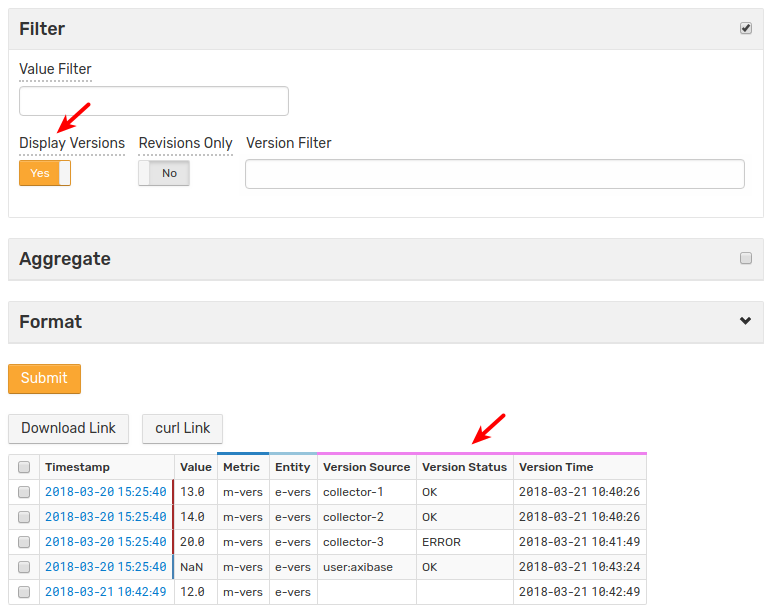

Open the Filters section and enable Display Versions setting on the Data > Export page.

  • Records with version history are highlighted with blue and brown-colored borders: blue border represents the latest value, brown border represents a historical, overwritten value.
  • NaN represents deleted values.
  • Aggregation functions and other calculations ignore historical and deleted values.

Version Filters

Name Description
Revisions Only Displays only modified values.
Version Filter An expression to filter version history.
The expression can contain the version_source, version_status and version_time fields.
The version_time field supports calendar syntax using the date() function.
The version_source and version_status fields support wildcards.
To view the deleted values use Double.isNaN(value) method in the Value Filter field.

Examples:

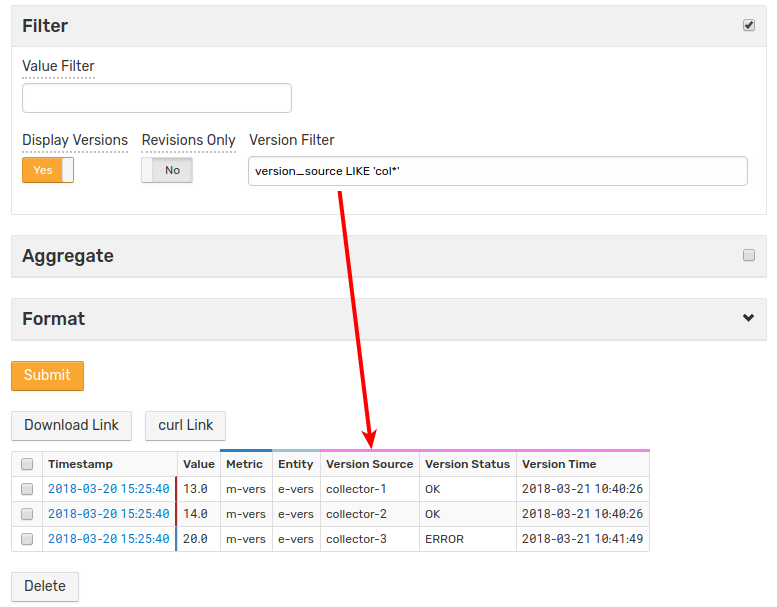

  • Match using wildcards
version_source LIKE 'col*'
![](./resources/5.png)

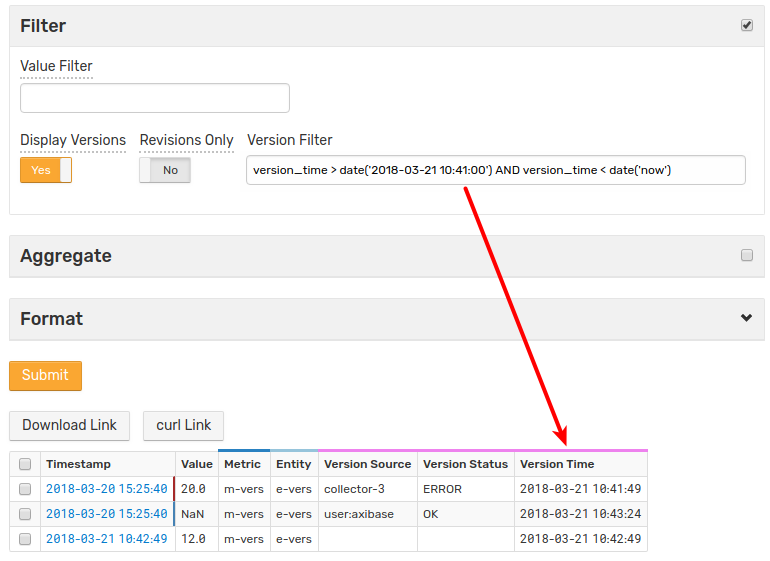

  • Match using date function
version_time > date('2018-03-21 10:41:00') AND version_time < date('now')
![](./resources/6.png)

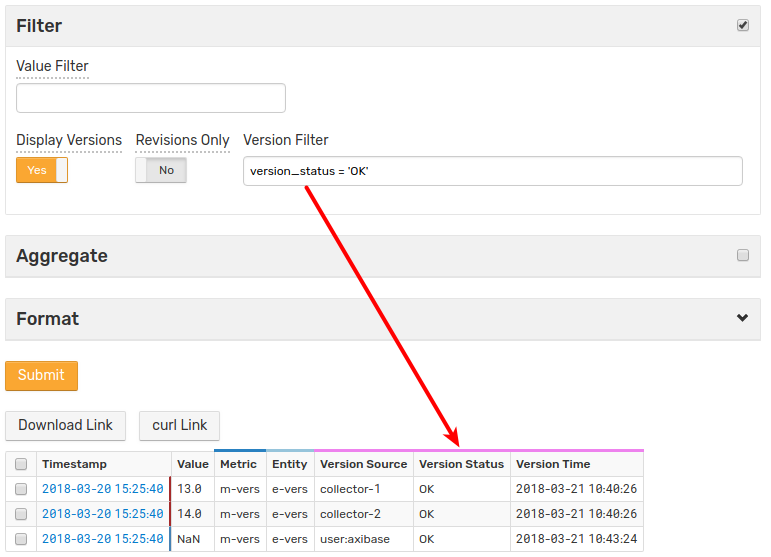

  • Match using exact value
version_status = 'OK'
![](./resources/7.png)

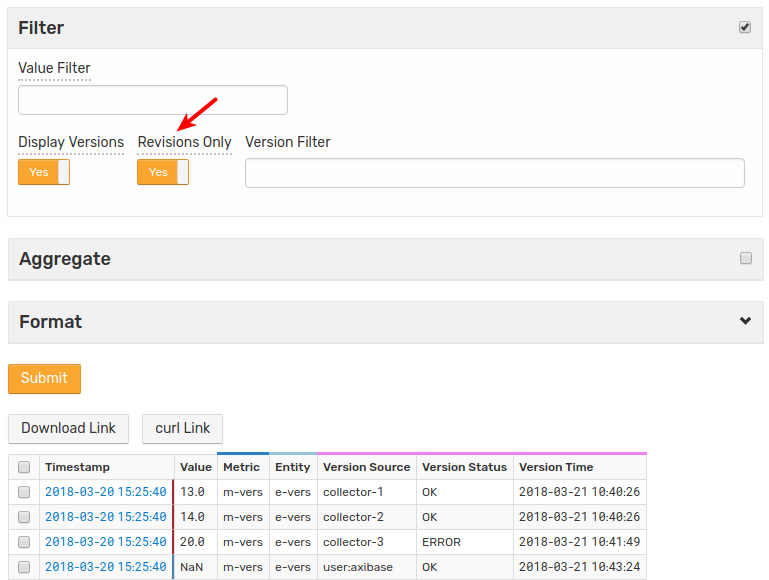

  • Display only modified values

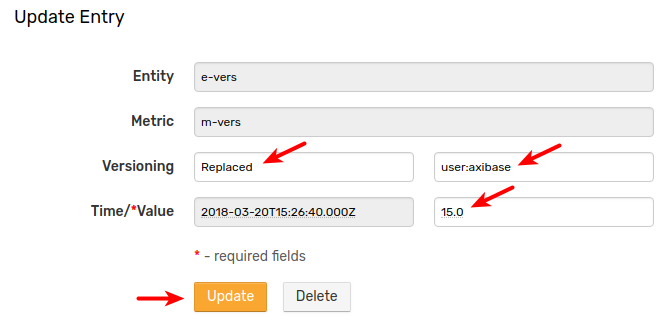

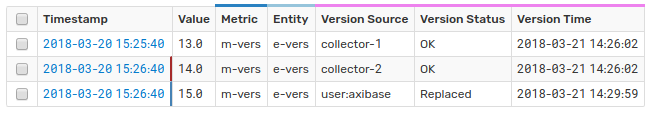

Modifying Values

Create a report in HTML format on the Ad-hoc Export page with versioning mode enabled.

Click timestamp for the selected record to open the Data Entry page.

Change version Status, Source, and Value fields and click Update.

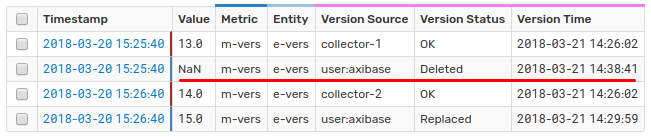

Deleting Values

Create a report in HTML format on the Ad-hoc Export page with versioning mode enabled.

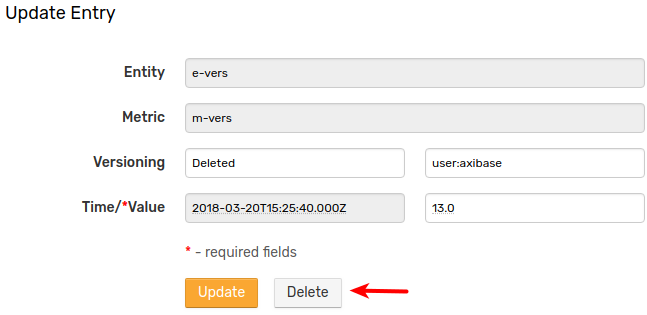

Click the timestamp for the selected record to open the Data Entry page.

Change version Status and Source, change the Value and click Delete.

Note that the current value for the selected timestamp is not deleted. Instead, it is replaced with a NaN marker.

A value can also be deleted using the selection checkbox and Delete button on the Data > Export page.

Deleting Multiple Series Values

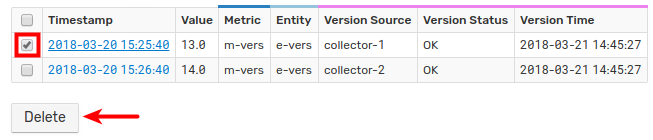

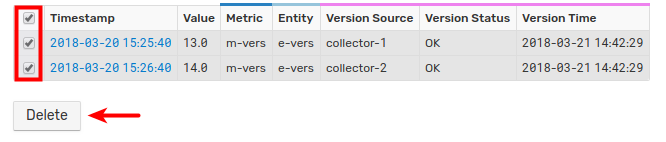

To delete multiple values, select specific rows using checkboxes or select all rows using the header checkbox. Click Delete.
