Weather CSV Example

Example CSV File

"Station Name","HALIFAX INTL A"
"Province","NOVA SCOTIA"
"Latitude","44.88"
"Longitude","-63.51"
"Elevation","145.40"
"Climate Identifier","8202251"
"WMO Identifier","71395"
"TC Identifier","YHZ"

"Legend"
"A","Accumulated"
"C","Precipitation occurred, amount uncertain"
"E","Estimated"
"F","Accumulated and estimated"
"L","Precipitation may or may not have occurred"
"M","Missing"
"N","Temperature missing but known to be > 0"
"S","More than one occurrence"
"T","Trace"
"Y","Temperature missing but known to be < 0"
"[empty]","No data available"
"^","The value displayed is based on incomplete data"
"†","Data for this day has undergone only preliminary quality checking"
"‡","Partner data that is not subject to review by the National Climate Archives"

"Date/Time","Year","Month","Day","Data Quality","Max Temp (°C)","Max Temp Flag","Min Temp (°C)","Min Temp Flag","Mean Temp (°C)","Mean Temp Flag","Heat Deg Days (°C)","Heat Deg Days Flag","Cool Deg Days (°C)","Cool Deg Days Flag","Total Rain (mm)","Total Rain Flag","Total Snow (cm)","Total Snow Flag","Total Precip (mm)","Total Precip Flag","Snow on Grnd (cm)","Snow on Grnd Flag","Dir of Max Gust (10s deg)","Dir of Max Gust Flag","Spd of Max Gust (km/h)","Spd of Max Gust Flag"
"2015-01-01","2015","01","01","‡","-2.2","","-14.9","","-8.6","","26.6","","0.0","","0.0","","1.6","","1.6","","0","","","M","<31",""
"2015-01-02","2015","01","02","‡","1.3","","-10.2","","-4.5","","22.5","","0.0","","0.0","","0.4","","0.4","","1","","","M","70",""
"2015-01-03","2015","01","03","‡","-10.0","","-14.8","","-12.4","","30.4","","0.0","","0.0","","0.0","T","0.0","T","1","","","M","54",""
"2015-01-04","2015","01","04","‡","8.1","","-13.4","","-2.7","","20.7","","0.0","","8.2","","12.8","","21.0","","8","","","M","70",""
"2015-01-05","2015","01","05","‡","8.2","","-12.7","","-2.3","","20.3","","0.0","","6.6","","0.0","T","6.6","","1","","","M","91",""
"2015-01-06","2015","01","06","‡","-12.6","","-16.2","","-14.4","","32.4","","0.0","","0.0","","1.6","","1.6","","0","","","M","67",""
"2015-01-07","2015","01","07","‡","-11.6","","-19.4","","-15.5","","33.5","","0.0","","0.0","","0.8","","0.8","","0","","","M","<31",""
"2015-01-08","2015","01","08","‡","-13.1","","-17.9","","-15.5","","33.5","","0.0","","0.0","","0.0","T","0.0","T","0","","","M","43",""
"2015-01-09","2015","01","09","‡","3.6","","-16.8","","-6.6","","24.6","","0.0","","3.2","","2.6","","5.8","","0","","","M","70",""
"2015-01-10","2015","01","10","‡","-5.3","","-10.6","","-8.0","","26.0","","0.0","","0.0","","0.6","","0.6","","2","","","M","43",""
"2015-01-11","2015","01","11","‡","-4.2","","-10.6","","-7.4","","25.4","","0.0","","0.0","","0.0","T","0.0","T","2","","","M","35",""
"2015-01-12","2015","01","12","‡","3.9","","-4.2","","-0.2","","18.2","","0.0","","2.4","","6.0","","8.4","","2","","","M","44",""
"2015-01-13","2015","01","13","‡","-3.0","","-17.3","","-10.2","","28.2","","0.0","","0.0","","2.6","","2.6","","8","","","M","57",""
"2015-01-14","2015","01","14","‡","-6.0","","-18.1","","-12.1","","30.1","","0.0","","0.0","","0.0","T","0.0","T","8","","","M","<31",""
"2015-01-15","2015","01","15","‡","-2.2","","-12.1","","-7.2","","25.2","","0.0","","0.0","","0.0","T","0.0","T","7","","","M","<31",""
"2015-01-16","2015","01","16","‡","2.1","","-11.7","","-4.8","","22.8","","0.0","","1.0","","3.0","","4.0","","9","","","M","59",""
"2015-01-17","2015","01","17","‡","-11.7","","-16.8","","-14.3","","32.3","","0.0","","0.0","","4.8","","4.8","","10","","","M","63",""
"2015-01-18","2015","01","18","‡","5.4","","-16.9","","-5.8","","23.8","","0.0","","0.0","","0.0","","0.0","","10","","","M","56",""
"2015-01-19","2015","01","19","‡","7.5","","1.0","","4.3","","13.7","","0.0","","24.8","","0.0","","24.8","","4","","","M","93",""
"2015-01-20","2015","01","20","‡","2.4","","-7.9","","-2.8","","20.8","","0.0","","0.0","","0.0","T","0.0","T","","","","M","65",""
"2015-01-21","2015","01","21","‡","-6.4","","-12.1","","-9.3","","27.3","","0.0","","0.0","","0.0","T","0.0","T","","","","M","48",""
"2015-01-22","2015","01","22","‡","-5.0","","-13.1","","-9.1","","27.1","","0.0","","0.0","","1.0","","1.0","","1","","","M","50",""
"2015-01-23","2015","01","23","‡","-3.5","","-7.3","","-5.4","","23.4","","0.0","","0.0","","0.0","T","0.0","T","1","","","M","48",""
"2015-01-24","2015","01","24","‡","9.8","","-3.5","","3.2","","14.8","","0.0","","35.0","","2.4","","37.4","","0","","","M","78",""
"2015-01-25","2015","01","25","‡","8.6","","-9.9","","-0.7","","18.7","","0.0","","0.0","","0.0","T","0.0","T","","","","M","70",""
"2015-01-26","2015","01","26","‡","-6.7","","-11.9","","-9.3","","27.3","","0.0","","0.0","","0.0","","0.0","","","","","M","50",""
"2015-01-27","2015","01","27","‡","-3.4","","-10.5","","-7.0","","25.0","","0.0","","1.0","","13.0","","14.0","","2","","","M","72",""
"2015-01-28","2015","01","28","‡","1.3","","-10.4","","-4.6","","22.6","","0.0","","0.0","","6.0","","6.0","","13","","","M","54",""
"2015-01-29","2015","01","29","‡","-4.8","","-12.3","","-8.6","","26.6","","0.0","","0.0","","0.0","","0.0","","17","","","M","32",""
"2015-01-30","2015","01","30","‡","-2.8","","-9.6","","-6.2","","24.2","","0.0","","0.0","","0.0","T","0.0","T","16","","","M","32",""
"2015-01-31","2015","01","31","‡","0.9","","-5.6","","-2.4","","20.4","","0.0","","","M","","M","","M","4","","","M","<31",""

Parser Configuration

Overview

This document describes the configuration of a CSV Parser to read the CSV file above and insert the data into ATSD. To create a new CSV parser, open the Data > CSV Parsers page.

Syntax

  • Define columns with Header because the underlying file contains an overly complex header.
  • Specify entity with Default Entity because there is no entity column.
  • Exclude unneeded data with the Ignored Columns field.
  • Apply Metric Prefix in anticipation of multiple incoming files which need to be differentiated at the metric level.
  • Define a time zone separate than ATSD server time zone for collected metrics to preserve local timestamp data.

Configuration

For information on all settings on the CSV Parser Editor page, including those not used in this tutorial, refer to the Uploading CSV Files tutorial.

Enable the parser, define a unique identifier, specify the command type, and indicate the delimiter symbol.

Field Setting Explanation
Enabled Checked Enables CSV parser.
Enabled parsers are active and able to be used by Collector
Name Halifax Weather Name field identifies a specific parser.
This is the name which is referenced by Collector to assign parser tasks.
Command Type series Parsed cells are written in the database as series commands.
Delimiter Comma File columns are separated by commas.

Field Setting Explanation
Default Entity weather.gc.ca No entity name is present in the CSV file. Thus, entity name is set manually to the URL of the collecting agency, Environment Canada.

Field Setting Explanation

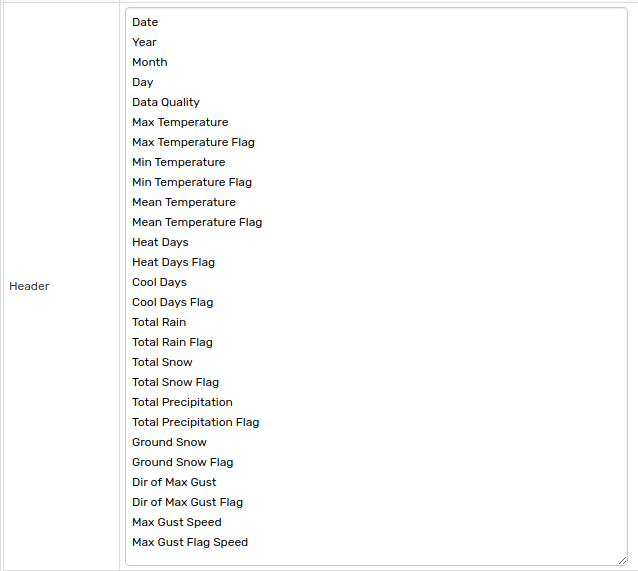

Header See above screenshot. Define header row in the order which titles are assigned.

Field Setting Explanation
Metric Prefix halifax. Apply a prefix to all collected metric.
Use this setting when collecting the same metric from the same entity for multiple resources to differentiate when performing database queries.
All collected metrics are appended with the defined prefix resulting in metric such as halifax.date.

Field Setting Explanation

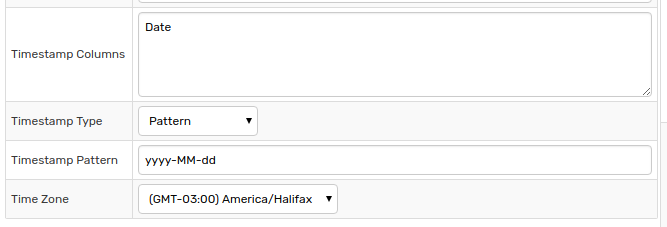

Timestamp Columns Date Define the timestamp column
Timestamp Time Pattern Specify how the timestamp is read by the parser.
Timestamp Pattern yyyy-MM-dd Time Pattern used when Pattern option is selected.
Time Zone (GMT-03:00) America/Halifax Define time zone of the collected metrics if it differs from server time zone to preserve local timestamp data.

Field Setting Explanation
Filter row['Max Temperature'] > 0 Filter incoming data based on the contents of a specific metric or timestamp.
For more information about Filter expressions, refer to Rule Engine Documentation.

Field Setting Explanation

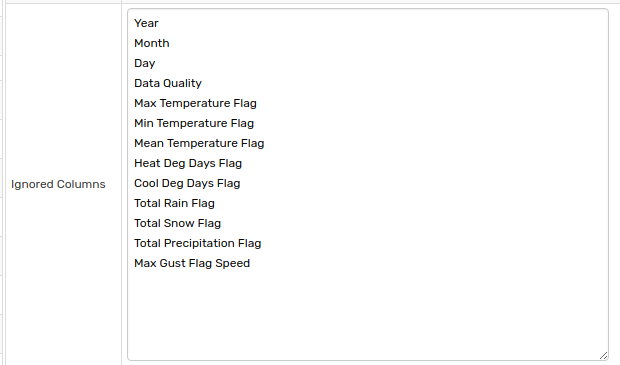

Ignored Columns See above screenshot. Define columns which are not included in resultant series commands.

Commands

Raw data row:

"2015-01-02","2015","01","02","‡","1.3","","-10.2","","-4.5","-4.0","22.5","","0.0","","0.0","","0.4","","0.4","","1","","","M","70",""

Resulting series command:

series e:weather.gc.ca d:2015-07-09T00:00:00Z m:max-temperature=1.3 m:min-temperature:-4.0 m:mean-temperature=0 m:heat-days=0 m:cool-days:0 m:total-rain:0.4 m:total-snow=0.4 m:total-precipitation=1.0 m:dir-of-max-gust=M m:max-gust-speed=70

Data rows where metric Max Temperature is not greater than 0 are excluded based on Filter settings
