SUM(Export)-SUM(Import) by Year

Data Source

  • Tables: bi.im_net1.m and bi.ex_net1.m

Steps

  • Drag-and-drop both tables to Canvas area

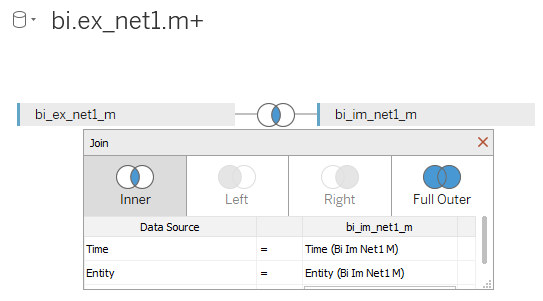

  • Select Inner Join, specify Time and Entity as equal fields:

  • Click Sheet 1
  • Click OK to acknowledge the warning about limitations
  • Drag-and-drop Datetime onto the column field
  • Rename both Value to Export Value and Import Value: right-click Value and choose Rename
  • Copy SUM([Export Value])-SUM([Import Value]) > double-click the rows field, paste, click Enter

In case of error remove ']' and select value from tooltip

  • Select Line in the drop-down list on the Marks Card
  • Optionally add drop lines

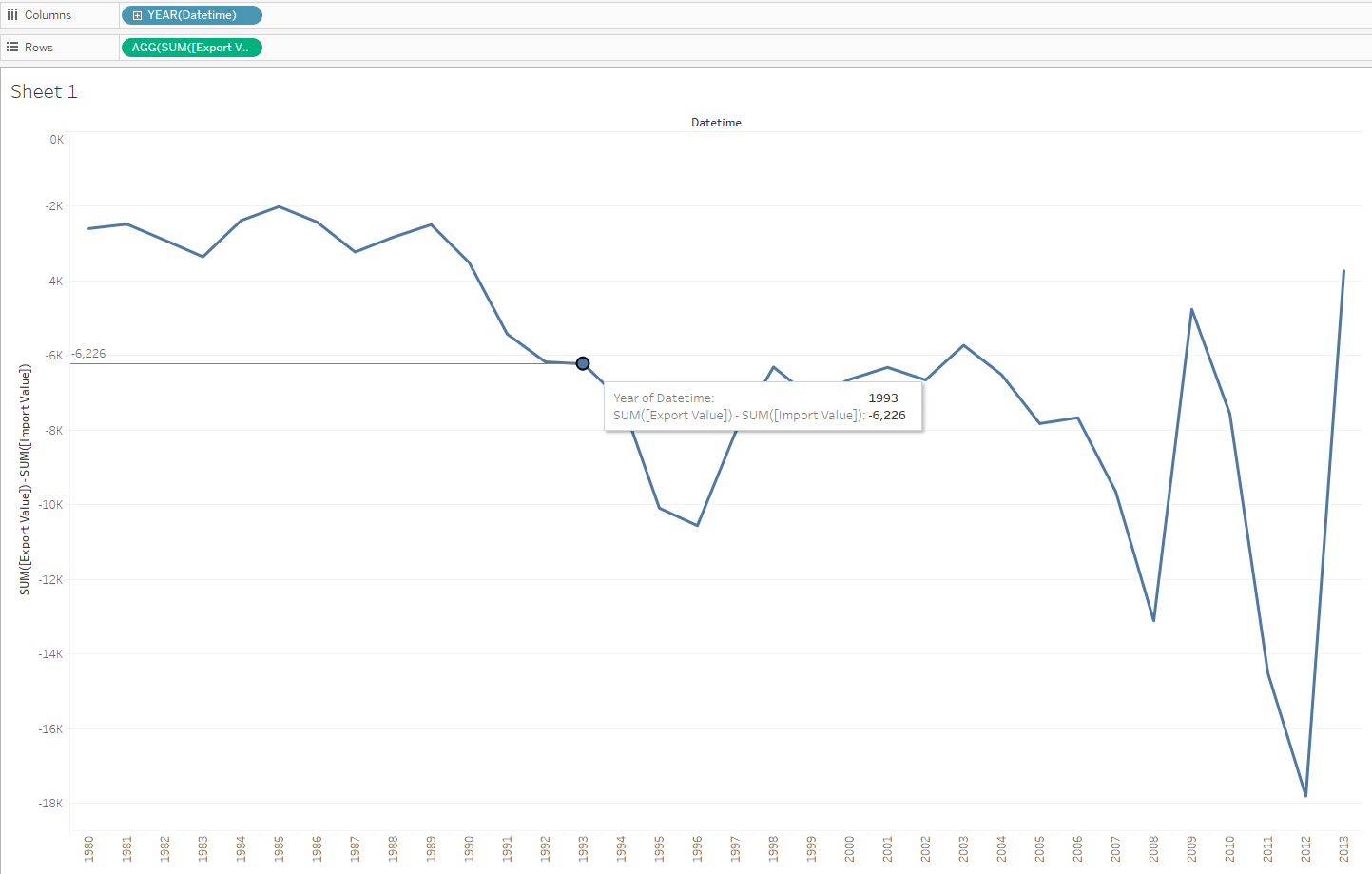

Results
