Transforming Unevenly Spaced Series to Regular Series

The WITH INTERPOLATE clause provides a way to transform unevenly spaced time series into regularly spaced series.

The underlying transformation calculates values at regular intervals using linear or step interpolation.

Unlike the GROUP BY PERIOD clause with the LINEAR option, which interpolates missing periods, the WITH INTERPOLATE clause operates using raw values. Here is an example in ChartLab that illustrates the difference between interpolating raw and aggregated values.

Similar to the original series, the regularized series can be used in JOIN queries, WHERE condition, ORDER BY and GROUP BY clauses.

The regularized timestamps can be aligned to the calendar or to begin with the start of the selection interval.

If the WHERE condition includes multiple selection intervals, the interpolation is performed for each interval separately.

Calculation

The interpolated values are calculated based on two adjacent values.

If a raw value exists at the regularized timestamp, such value is used without modifications irrespective of neighboring values.

Irregular Series

| time                 | value |
|----------------------|-------|
| 2016-09-17T08:00:00Z | 3.70  |
| 2016-09-17T08:00:26Z | 4.40  |
| 2016-09-17T08:01:14Z | 9.00  |
| 2016-09-17T08:01:30Z | 2.30  |

Regular `30 SECOND` Series Calculated with the `LINEAR` Function

| time                 | value |
|----------------------|-------|
| 2016-09-17T08:00:00Z | 3.70  | returned without modifications because raw value is available at 08:00:00Z
| 2016-09-17T08:00:30Z | 4.78  | = 4.4 + (9.0-4.4) * ((00:30-00:26)/(01:14-00:26)) = 4.4 + 4.6*(4/48)  = 4.783
| 2016-09-17T08:01:00Z | 7.66  | = 4.4 + (9.0-4.4) * ((01:00-00:26)/(01:14-00:26)) = 4.4 + 4.6*(34/48) = 7.658
| 2016-09-17T08:01:30Z | 2.30  | returned without modifications because raw value is available at 08:01:30Z

Regular `30 SECOND` Series Calculated with the `PREVIOUS` Function

| time                 | value |
|----------------------|-------|
| 2016-09-17T08:00:00Z | 3.70  | returned without modifications because raw value is available at 08:00:00Z
| 2016-09-17T08:00:30Z | 4.40  | based on previous value of 4.40 recorded at 08:00:26Z
| 2016-09-17T08:01:00Z | 4.40  | based on previous value of 4.40 recorded at 08:00:26Z
| 2016-09-17T08:01:30Z | 2.30  | returned without modifications because raw value is available at 08:01:30Z

Examples

Interpolation Options

Raw Values

SELECT datetime, value FROM metric1
  WHERE entity = 'e1'
  AND datetime >= '2016-09-16T00:00:00Z' AND datetime < '2016-09-18T00:00:00Z'

| datetime                 | value   |
|--------------------------|---------|
| 2016-09-17T00:00:00.000Z |   4.500 |
| 2016-09-17T01:23:11.000Z |     NaN |
| 2016-09-17T02:00:05.000Z | -70.000 |
| 2016-09-17T08:00:18.000Z |  10.400 |
| 2016-09-17T08:00:26.000Z |   4.400 |
| 2016-09-17T08:01:14.000Z |   9.000 |
| 2016-09-17T08:01:34.000Z |   2.100 |
| 2016-09-17T08:01:52.000Z |  26.500 |
| 2016-09-17T08:02:10.000Z |   0.000 |
| 2016-09-17T08:03:00.000Z |   7.700 |
| 2016-09-17T08:04:48.000Z |   6.600 |
| 2016-09-17T23:04:00.000Z | -23.400 |

Interpolation Function: `LINEAR`

Values at regular times are linearly interpolated between neighboring values.

SELECT datetime, value FROM metric1
  WHERE entity = 'e1'
AND datetime >= '2016-09-17T08:00:00Z' AND datetime < '2016-09-17T08:06:00Z'
  WITH INTERPOLATE(30 SECOND, LINEAR)

A value at 08:00:00 is not returned because there is no prior value in the INNER mode to interpolate between it and the value at 08:00:18. Values at 08:05:00 and 08:05:30 are not returned because there is no value after 08:04:48 in the INNER mode.

| datetime                 | value  |
|--------------------------|--------|
| 2016-09-17T08:00:30.000Z |  4.783 |
| 2016-09-17T08:01:00.000Z |  7.658 |
| 2016-09-17T08:01:30.000Z |  3.480 |
| 2016-09-17T08:02:00.000Z | 14.722 |
| 2016-09-17T08:02:30.000Z |  3.080 |
| 2016-09-17T08:03:00.000Z |  7.700 |
| 2016-09-17T08:03:30.000Z |  7.394 |
| 2016-09-17T08:04:00.000Z |  7.089 |
| 2016-09-17T08:04:30.000Z |  6.783 |

The boundary parameter OUTER retrieves values outside of the selection interval to be used for interpolating leading/trailing values.

SELECT datetime, value FROM metric1
  WHERE entity = 'e1'
AND datetime >= '2016-09-17T08:00:00Z' AND datetime < '2016-09-17T08:06:00Z'
  WITH INTERPOLATE(30 SECOND, LINEAR, OUTER)

The prior value outside of the interval, found at 02:00:05, is used to calculate an interpolated value between the outside value and the first raw value within the interval.

The next value outside the interval, found at 23:04:00, is used to interpolate the last value within the interval.

| datetime                 | value  |
|--------------------------|--------|
| 2016-09-17T08:00:00.000Z | 10.333 | - interpolated between values at 02:00:05 and 08:00:26
| 2016-09-17T08:00:30.000Z |  4.783 |
| 2016-09-17T08:01:00.000Z |  7.658 |
| 2016-09-17T08:01:30.000Z |  3.480 |
| 2016-09-17T08:02:00.000Z | 14.722 |
| 2016-09-17T08:02:30.000Z |  3.080 |
| 2016-09-17T08:03:00.000Z |  7.700 |
| 2016-09-17T08:03:30.000Z |  7.394 |
| 2016-09-17T08:04:00.000Z |  7.089 |
| 2016-09-17T08:04:30.000Z |  6.783 |
| 2016-09-17T08:05:00.000Z |  6.593 | - interpolated between values at 08:04:48 and 23:04:00
| 2016-09-17T08:05:30.000Z |  6.577 | - interpolated between values at 08:04:48 and 23:04:00

Interpolation Function: `PREVIOUS`

Values at regular times are set to the previous value.

SELECT datetime, value FROM metric1
  WHERE entity = 'e1'
AND datetime >= '2016-09-17T08:00:00Z' AND datetime < '2016-09-17T08:06:00Z'
  WITH INTERPOLATE(30 SECOND, PREVIOUS, OUTER)

| datetime                 | value   |
|--------------------------|---------|
| 2016-09-17T08:00:00.000Z | -70.000 | - set to previous value at 02:00:05
| 2016-09-17T08:00:30.000Z |   4.400 | - set to previous value at 08:00:26
| 2016-09-17T08:01:00.000Z |   4.400 |
| 2016-09-17T08:01:30.000Z |   9.000 |
| 2016-09-17T08:02:00.000Z |  26.500 |
| 2016-09-17T08:02:30.000Z |   0.000 |
| 2016-09-17T08:03:00.000Z |   7.700 |
| 2016-09-17T08:03:30.000Z |   7.700 |
| 2016-09-17T08:04:00.000Z |   7.700 |
| 2016-09-17T08:04:30.000Z |   7.700 |
| 2016-09-17T08:05:00.000Z |   6.600 | - set to previous value at 08:04:48
| 2016-09-17T08:05:30.000Z |   6.600 | - set to previous value at 08:04:48

Interpolation Function: `AUTO`

In AUTO mode, values are interpolated based on the Interpolate setting for each metric separately.

metric1 Interpolate setting: LINEAR
metric2 Interpolate setting: PREVIOUS

SELECT metric, datetime, value FROM atsd_series
  WHERE metric IN ('metric1', 'metric2')
AND entity = 'e1'
  AND datetime >= '2016-09-17T08:00:00Z' AND datetime < '2016-09-17T08:01:30Z'
WITH INTERPOLATE(30 SECOND, AUTO, OUTER)
  ORDER BY metric

| metric  | datetime                 | value   |
|---------|--------------------------|---------|
| metric1 | 2016-09-17T08:00:00.000Z | 10.333  | - interpolated with LINEAR
| metric1 | 2016-09-17T08:00:30.000Z | 4.783   | - interpolated with LINEAR
| metric1 | 2016-09-17T08:01:00.000Z | 7.658   | - interpolated with LINEAR
| metric2 | 2016-09-17T08:00:00.000Z | -70.000 | - interpolated with PREVIOUS
| metric2 | 2016-09-17T08:00:30.000Z | 4.400   | - interpolated with PREVIOUS
| metric2 | 2016-09-17T08:01:00.000Z | 4.400   | - interpolated with PREVIOUS

Fill `false`

Missing periods that cannot be interpolated are ignored and not included in the result set.

SELECT datetime, value FROM metric1
  WHERE entity = 'e1'
AND datetime >= '2016-09-17T08:00:00Z' AND datetime < '2016-09-17T08:01:30Z'
  WITH INTERPOLATE(30 SECOND, LINEAR, INNER, FALSE)

The value at 08:00:00 is excluded because the prior value in the INNER mode is not available for linear interpolation.

| datetime                 | value  |
|--------------------------|--------|
| no record @08:00:00.000Z |        | - row excluded
| 2016-09-17T08:00:30.000Z |  4.783 |
| 2016-09-17T08:01:00.000Z |  7.658 |

Fill: `NaN`

Missing periods that cannot be interpolated are returned with the NaN (Not a Number) value.

SELECT datetime, value FROM metric1
  WHERE entity = 'e1'
AND datetime >= '2016-09-17T08:00:00Z' AND datetime < '2016-09-17T08:01:30Z'
  WITH INTERPOLATE(30 SECOND, LINEAR, INNER, NaN)

The value at 08:00:00 is NaN because the prior value in the INNER mode is not available for linear interpolation.

| datetime                 | value  |
|--------------------------|--------|
| 2016-09-17T08:00:00.000Z |    NaN |
| 2016-09-17T08:00:30.000Z |  4.783 |
| 2016-09-17T08:01:00.000Z |  7.658 |

Fill: `EXTEND`

Missing periods at the beginning of the selection interval that cannot be interpolated are set to first raw value.

Missing periods at the end of the selection interval that cannot be interpolated are set to last raw value.

SELECT datetime, value FROM metric1
  WHERE entity = 'e1'
AND datetime >= '2016-09-17T08:00:00Z' AND datetime < '2016-09-17T08:06:00Z'
  WITH INTERPOLATE(30 SECOND, LINEAR, INNER, TRUE)

The value at 08:00:00 is set to first raw value at 08:00:18 because the prior value at 02:00:05 is not available in the INNER mode.

| datetime                 | value  |
|--------------------------|--------|
| 2016-09-17T08:00:00.000Z | 10.400 | - set as first raw value at 08:00:18
| 2016-09-17T08:00:30.000Z |  4.783 |
| 2016-09-17T08:01:00.000Z |  7.658 |
...
| 2016-09-17T08:04:30.000Z |  6.783 |
| 2016-09-17T08:05:00.000Z |  6.600 | - set as last raw value at 08:04:48
| 2016-09-17T08:05:30.000Z |  6.600 | - set as last raw value at 08:04:48

Alignment

The default CALENDAR alignment defines regular timestamps according to the calendar. For example, a 30 second interval starts at 0 seconds each minute. Additionally, a 5 minute interval starts at 0 seconds every 5 minutes, beginning with the 0 minute of the current hour.

`CALENDAR`

SELECT datetime, value FROM metric1
  WHERE entity = 'e1'
AND datetime >= '2016-09-17T08:00:10Z' AND datetime < '2016-09-17T08:01:40Z'
  WITH INTERPOLATE(30 SECOND, LINEAR, OUTER, FALSE, CALENDAR)

| datetime                 | value |
|--------------------------|-------|
| 2016-09-17T08:00:30.000Z | 4.783 |
| 2016-09-17T08:01:00.000Z | 7.658 |
| 2016-09-17T08:01:30.000Z | 3.480 |

`START_TIME`

The START_TIME alignment defines regular timestamps according to the start time specified in the query.

SELECT datetime, value FROM metric1
  WHERE entity = 'e1'
AND datetime >= '2016-09-17T08:00:10Z' AND datetime < '2016-09-17T08:01:40Z'
  WITH INTERPOLATE(30 SECOND, LINEAR, OUTER, FALSE, START_TIME)

| datetime                 | value  |
|--------------------------|--------|
| 2016-09-17T08:00:10.000Z | 10.370 |
| 2016-09-17T08:00:40.000Z | 5.742  |
| 2016-09-17T08:01:10.000Z | 8.617  |

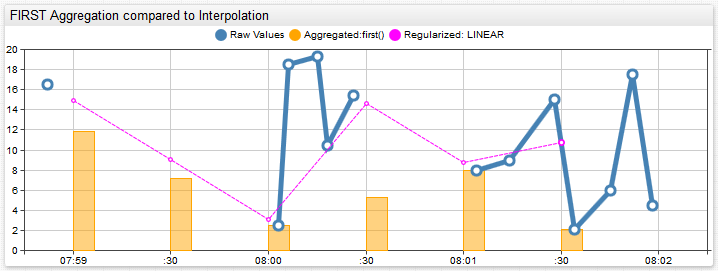

`GROUP BY PERIOD` Compared to `WITH INTERPOLATE`

The GROUP BY PERIOD() clause calculates for all values in each period by applying an aggregation function such as average, maximum, first, last etc.

If the period does not have any values, the period is omitted from the results.

An optional LINEAR directive for the GROUP BY PERIOD() clause changes the default behavior and returns results for missing periods by applying linear interpolation between values of the neighboring periods.

ChartLab examples

Interpolation Options

Data

| datetime                 | value   |
|--------------------------|---------|
| 2016-09-17T02:00:05.000Z | -70.000 |
| 2016-09-17T08:00:18.000Z |  10.400 |
| 2016-09-17T08:00:26.000Z |   4.400 |
| 2016-09-17T08:01:14.000Z |   9.000 |
| 2016-09-17T08:01:34.000Z |   2.100 |

`GROUP BY PERIOD`

SELECT datetime, first(value), last(value), avg(value) FROM metric1
  WHERE entity = 'e1'
AND datetime >= '2016-09-17T08:00:00Z' AND datetime < '2016-09-17T08:02:00Z'
  GROUP BY PERIOD(30 SECOND, LINEAR)

| datetime                 | first(value) | last(value) | avg(value) |
|--------------------------|--------------|-------------|------------|
| 2016-09-17T08:00:00.000Z | 10.40        |  4.40       |  7.40      | -- The period has 2 values. Set to first value at 08:00:18, last value at 08:00:26 or using an aggregation function such as average
| 2016-09-17T08:00:30.000Z |  9.70        |  6.70       |  8.20      | -- The period has no values. Linearly interpolated between 08:00:00 and 08:01:00; 10.40 + (9.00-10.40)* 30sec/60sec = 9.70
| 2016-09-17T08:01:00.000Z |  9.00        |  9.00       |  9.00      | -- The period has only 1 record. last(), first(), and avg() return the same result.
| 2016-09-17T08:01:30.000Z |  2.10        | 26.50       | 14.30      | -- The period has 2 values, calculated similar to period starting 08:00:00.

`WITH INTERPOLATE`

The WITH INTERPOLATE clause, on the other hand, calculates values at calendar-aligned timestamps using neighboring raw values.

SELECT datetime, value FROM metric1
  WHERE entity = 'e1'
AND datetime >= '2016-09-17T08:00:00Z' AND datetime < '2016-09-17T08:02:00Z'
  WITH INTERPOLATE(30 SECOND, LINEAR, OUTER)

| datetime                 | value |
|--------------------------|-------|
| 2016-09-17T08:00:00.000Z | 10.33 | -- Linearly interpolated between prior value of -70 at 02:00:05 and first value of 10.40 at 08:00:18.
| 2016-09-17T08:00:30.000Z |  4.78 | -- Linearly interpolated between 4.40 at 08:00:26 and 9.00 at 08:01:14.
| 2016-09-17T08:01:00.000Z |  7.66 | -- Linearly interpolated between 4.40 at 08:00:26 and 9.00 at 08:01:14.
| 2016-09-17T08:01:30.000Z |  3.48 | -- Linearly interpolated between 9.00 at 08:01:14 and 2.10 at 08:01:34.

If raw values have additional samples recorded within values in each period, such values are ignored.

| time     | value   |
|----------|---------|
| 08:00:18 |   10.40 | -- used to interpolate value at 08:00:00 between 02:00:05 and 08:00:18
| 08:00:19 |  100.50 | -- ignored
| 08:00:20 |  200.40 | -- ignored
| 08:00:21 |  400.10 | -- ignored
| 08:00:22 |  600.20 | -- ignored
| 08:00:23 | -100.30 | -- ignored
| 08:00:24 |     0.0 | -- ignored
| 08:00:25 |    10.3 | -- ignored
| 08:00:26 |    4.40 | -- used to interpolate value at 08:00:30 between 08:00:26 and 08:01:14

Combination

`GROUP BY` Example

The interpolation and GROUP BY clauses can be combined.

The WITH INTERPOLATE transformation is performed first, with regular series subsequently processed by aggregation functions.

SELECT datetime, count(value), avg(value) FROM metric1
  WHERE entity = 'e1'
AND datetime >= '2016-09-17T08:00:00Z' AND datetime < '2016-09-17T08:02:00Z'
  GROUP BY PERIOD (60 SECOND)
WITH INTERPOLATE(30 SECOND, LINEAR, OUTER)

| datetime                 | count(value) | avg(value) |
|--------------------------|--------------|------------|
| 2016-09-17T08:00:00.000Z | 2.000        | 7.558      |
| 2016-09-17T08:01:00.000Z | 2.000        | 5.569      |

`JOIN` Example

The WITH INTERPOLATE transformation regularizes all series returned by the query to the same timestamps, to join the values.

Series t1. This metric is interpolated with the PREVIOUS function.

SELECT t1.entity, t1.datetime, t1.value
  FROM "meminfo.memfree" t1
WHERE t1.datetime >= '2016-09-18T14:00:00.000Z' AND t1.datetime < '2016-09-18T14:01:00.000Z'
  AND t1.entity = 'nurswgvml006'

| t1.entity    | t1.datetime              | t1.value |
|--------------|--------------------------|----------|
| nurswgvml006 | 2016-09-18T14:00:06.000Z | 75336.0  |
| nurswgvml006 | 2016-09-18T14:00:21.000Z | 71260.0  |
| nurswgvml006 | 2016-09-18T14:00:36.000Z | 68904.0  |
| nurswgvml006 | 2016-09-18T14:00:51.000Z | 68156.0  |

Series t2. This metric is interpolated with the LINEAR function.

SELECT t2.entity, t2.datetime, t2.value
  FROM "mpstat.cpu_busy" t2
WHERE t2.datetime >= '2016-09-18T14:00:00.000Z' AND t2.datetime < '2016-09-18T14:01:00.000Z'
  AND t2.entity = 'nurswgvml006'

| t2.entity    | t2.datetime              | t2.value |
|--------------|--------------------------|----------|
| nurswgvml006 | 2016-09-18T14:00:10.000Z | 100.0    |
| nurswgvml006 | 2016-09-18T14:00:26.000Z | 79.2     |
| nurswgvml006 | 2016-09-18T14:00:42.000Z | 16.2     |
| nurswgvml006 | 2016-09-18T14:00:58.000Z | 9.0      |

JOINed series:

SELECT t1.entity AS "entity", t1.datetime AS "datetime", t1.value AS "cpu", t2.value AS "mem"
  FROM "meminfo.memfree" t1
  JOIN "mpstat.cpu_busy" t2
WHERE t1.datetime >= '2016-09-18T14:00:00.000Z' AND t1.datetime < '2016-09-18T14:01:00.000Z'
AND t1.entity = 'nurswgvml006'
  WITH INTERPOLATE(15 SECOND, AUTO)

| entity       | datetime                 | cpu     | mem  |
|--------------|--------------------------|---------|------|
| nurswgvml006 | 2016-09-18T14:00:15.000Z | 75336.0 | 93.5 |
| nurswgvml006 | 2016-09-18T14:00:30.000Z | 71260.0 | 63.4 |
| nurswgvml006 | 2016-09-18T14:00:45.000Z | 68904.0 | 14.8 |

Without interpolation, a join of Series 1 and Series 2 produces an empty result because their row times are different.

`value` Filter

The WITH INTERPOLATE clause modifies how values are compared in the WHERE clause.

If the WITH INTERPOLATE clause is included in the query, the value condition compares interpolated values instead of raw values.

SELECT datetime, value
  FROM "mpstat.cpu_busy"
WHERE datetime >= '2016-09-18T14:03:30.000Z' AND datetime <= '2016-09-18T14:04:30.000Z'
  AND entity = 'nurswgvml006'

Raw values:

| datetime                 | value |
|--------------------------|-------|
| 2016-09-18T14:03:38.000Z | 4.0   |
| 2016-09-18T14:03:54.000Z | 3.0   |
| 2016-09-18T14:04:10.000Z | 7.1   |
| 2016-09-18T14:04:26.000Z | 100.0 |

Without the WITH INTERPOLATE clause, the WHERE clause filters raw values.

SELECT datetime, value
  FROM "mpstat.cpu_busy"
WHERE datetime >= '2016-09-18T14:03:30.000Z' AND datetime <= '2016-09-18T14:04:30.000Z'
  AND entity = 'nurswgvml006'
  AND value < 100

| datetime                 | value |
|--------------------------|-------|
| 2016-09-18T14:03:38.000Z | 4.0   |
| 2016-09-18T14:03:54.000Z | 3.0   |
| 2016-09-18T14:04:10.000Z | 7.1   |

If the WITH INTERPOLATE clause is added, the value filter is applied to the interpolated values instead of raw values.

The following queries produce the same result because value < 100 is no longer applied to raw values. As such, the sample at 14:04:26 remains in the series for the purpose of interpolation.

SELECT datetime, value
  FROM "mpstat.cpu_busy"
WHERE datetime >= '2016-09-18T14:03:30.000Z' AND datetime <= '2016-09-18T14:04:30.000Z'
  AND entity = 'nurswgvml006'
  WITH INTERPOLATE(15 SECOND, LINEAR)

SELECT datetime, value
  FROM "mpstat.cpu_busy"
WHERE datetime >= '2016-09-18T14:03:30.000Z' AND datetime <= '2016-09-18T14:04:30.000Z'
  AND entity = 'nurswgvml006'
AND value < 100
  WITH INTERPOLATE(15 SECOND, LINEAR)

The above queries return the same result:

| datetime                 | value |
|--------------------------|-------|
| 2016-09-18T14:03:45.000Z | 3.6   |
| 2016-09-18T14:04:00.000Z | 4.6   |
| 2016-09-18T14:04:15.000Z | 36.2  |

Time Zone

In CALENDAR alignment and if the period specified is equal or greater than 1 DAY, the interpolated timestamps are set to 00:00 of each day based on the database time zone. The default time zone can be customized by specifying a time zone identifier or entity.timeZone and metric.timeZone columns.

Custom Time Zone

SELECT entity, value,
  date_format(time, 'yyyy-MM-dd HH:mm z', 'UTC') AS "UTC datetime",
  date_format(time, 'yyyy-MM-dd HH:mm z', 'US/Pacific') AS "Local datetime"
FROM "mpstat.cpu_busy"
  WHERE datetime >= NOW - 2*DAY
WITH INTERPOLATE(1 DAY, LINEAR, INNER, FALSE, CALENDAR, 'US/Pacific')

| entity       | value | UTC datetime         | Local datetime       |
|--------------|-------|----------------------|----------------------|
| nurswgvml007 | 65.5  | 2017-08-17 07:00 UTC | 2017-08-17 00:00 PDT |
| nurswgvml007 | 38.5  | 2017-08-18 07:00 UTC | 2017-08-18 00:00 PDT |
| nurswgvml006 | 33.2  | 2017-08-17 07:00 UTC | 2017-08-17 00:00 PDT |
| nurswgvml006 | 33.3  | 2017-08-18 07:00 UTC | 2017-08-18 00:00 PDT |

Entity or Metric Time Zone

SELECT entity, entity.timeZone,
  value,
  date_format(time, 'yyyy-MM-dd HH:mm z', 'UTC') AS "UTC datetime",
  date_format(time, 'yyyy-MM-dd HH:mm z', entity.timeZone) AS "Local datetime"
FROM "mpstat.cpu_busy"
  WHERE datetime >= NOW - 2*DAY
WITH INTERPOLATE(1 DAY, LINEAR, INNER, FALSE, CALENDAR, entity.timeZone)

| entity       | entity.timeZone | value | UTC datetime         | Local datetime       |
|--------------|-----------------|-------|----------------------|----------------------|
| nurswgvml007 | PST             | 65.5  | 2017-08-17 07:00 UTC | 2017-08-17 00:00 PDT |
| nurswgvml007 | PST             | 38.5  | 2017-08-18 07:00 UTC | 2017-08-18 00:00 PDT |
| nurswgvml006 | US/Mountain     | 31.1  | 2017-08-17 06:00 UTC | 2017-08-17 00:00 MDT |
| nurswgvml006 | US/Mountain     | 3.0   | 2017-08-18 06:00 UTC | 2017-08-18 00:00 MDT |
| nurswgvml010 | null            | 0.4   | 2017-08-17 00:00 UTC | 2017-08-17 00:00 GMT |
| nurswgvml010 | null            | 22.5  | 2017-08-18 00:00 UTC | 2017-08-18 00:00 GMT |

Multiple Intervals

If the WHERE condition includes multiple selection intervals, the interpolation is performed for each interval separately. The values between those intervals are NOT interpolated.

SELECT datetime, value
  FROM "mpstat.cpu_busy"
WHERE entity = 'nurswgvml006'
  AND (datetime BETWEEN '2016-09-18T14:00:00Z' AND '2016-09-18T14:01:00Z'
    OR datetime BETWEEN '2016-09-18T14:04:00Z' AND '2016-09-18T14:05:00Z')
  WITH INTERPOLATE(15 SECOND)

| datetime             | value |
|----------------------|-------|
| 2016-09-18T14:00:00Z | 40.0  | [14:00-14:01] interval START
| 2016-09-18T14:00:15Z | 93.5  |
| 2016-09-18T14:00:30Z | 63.4  |
| 2016-09-18T14:00:45Z | 14.8  |
| 2016-09-18T14:01:00Z | 12.0  | [14:00-14:01] interval END
... no values interpolated between the two intervals ...
| 2016-09-18T14:04:00Z | 4.6   | [14:04-14:05] interval START
| 2016-09-18T14:04:15Z | 36.2  |
| 2016-09-18T14:04:30Z | 100.0 |
| 2016-09-18T14:04:45Z | 82.4  |
| 2016-09-18T14:05:00Z | 5.8   | [14:04-14:05] interval END

Input Commands

series e:e1   m:metric1=4.5 d:2016-09-17T00:00:00Z
series e:e1   m:metric1=NaN d:2016-09-17T01:23:11Z
series e:e1 m:metric1=-70.0 d:2016-09-17T02:00:05Z
series e:e1  m:metric1=10.4 d:2016-09-17T08:00:18Z
series e:e1   m:metric1=4.4 d:2016-09-17T08:00:26Z
series e:e1   m:metric1=9.0 d:2016-09-17T08:01:14Z
series e:e1   m:metric1=2.1 d:2016-09-17T08:01:34Z
series e:e1  m:metric1=26.5 d:2016-09-17T08:01:52Z
series e:e1   m:metric1=0.0 d:2016-09-17T08:02:10Z
series e:e1   m:metric1=7.7 d:2016-09-17T08:03:00Z
series e:e1   m:metric1=6.6 d:2016-09-17T08:04:48Z
series e:e1 m:metric1=-23.4 d:2016-09-17T23:04:00Z

series e:e2  m:metric1=10.4 d:2016-09-17T01:23:11Z

series e:e3   m:metric1=1.0 d:2016-09-17T01:01:00Z
series e:e3   m:metric1=NaN d:2016-09-17T01:03:00Z
series e:e3   m:metric1=4.0 d:2016-09-17T01:04:00Z

series e:e1 m:metric2=-70.0 d:2016-09-17T02:00:05Z
series e:e1  m:metric2=10.4 d:2016-09-17T08:00:18Z
series e:e1   m:metric2=4.4 d:2016-09-17T08:00:26Z
series e:e1   m:metric2=9.0 d:2016-09-17T08:01:14Z
series e:e1   m:metric2=2.1 d:2016-09-17T08:01:34Z

# Transforming Unevenly Spaced Series to Regular Series

# Calculation

# Irregular Series

# Regular 30 SECOND Series Calculated with the LINEAR Function

# Regular 30 SECOND Series Calculated with the PREVIOUS Function

# Examples

# Raw Values

# Interpolation Function: LINEAR

# Interpolation Function: PREVIOUS

# Interpolation Function: AUTO

# Fill false

# Fill: NaN

# Fill: EXTEND

# Alignment

# CALENDAR

# START_TIME

# GROUP BY PERIOD Compared to WITH INTERPOLATE

# Data

# GROUP BY PERIOD

# WITH INTERPOLATE

# Combination

# GROUP BY Example

# JOIN Example

# value Filter

# Time Zone

# Multiple Intervals

# Input Commands
