SQL Console

ATSD supports SQL syntax for flexible querying and analysis of time series data. One of the options available for executing ad hoc SQL queries is the built-in SQL Console.

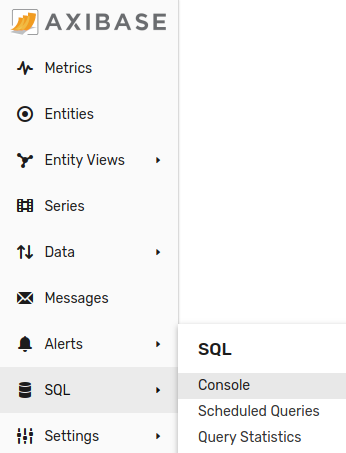

Open SQL > SQL Console from the main menu:

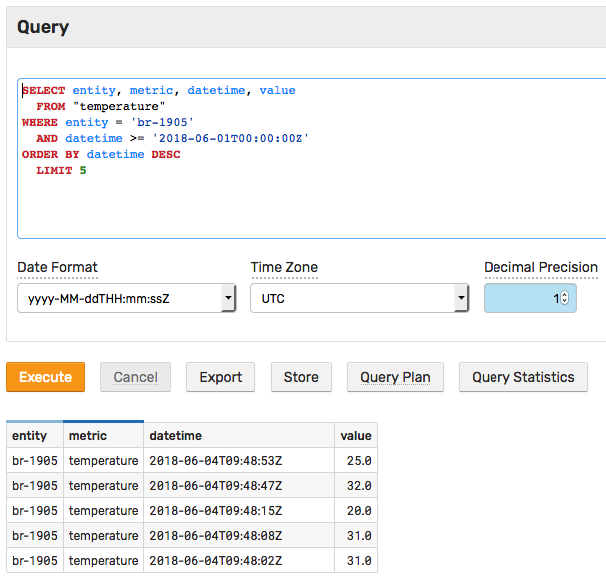

Retrieve the five most recent values for the temperature series.

SELECT entity, metric, datetime, value
  FROM "temperature"
WHERE entity = 'br-1905'
  AND datetime >= '2018-06-01T00:00:00Z'
ORDER BY datetime DESC
  LIMIT 5

Export query results into CSV, Excel, and JSON by clicking Export.

Modify the query to include metadata fields, tags, and to format the date:

SELECT entity.label AS "asset", entity.tags.model AS "model",
  metric, metric.units AS "units",
  date_format(time, 'yyyy-MM-dd HH:mm:ss', 'US/Pacific') AS "date", value
  FROM "temperature"
WHERE entity = 'br-1905'
  AND datetime >= '2018-06-01T00:00:00Z'
ORDER BY datetime DESC
  LIMIT 5
| asset    | model   | metric       | units    | date                 | value |
|----------|---------|--------------|----------|----------------------|-------|
| BR-1905  | 4520-1  | temperature  | Celsius  | 2018-06-04 02:48:53  | 25.0  |
| BR-1905  | 4520-1  | temperature  | Celsius  | 2018-06-04 02:48:47  | 32.0  |
| BR-1905  | 4520-1  | temperature  | Celsius  | 2018-06-04 02:48:15  | 20.0  |
| BR-1905  | 4520-1  | temperature  | Celsius  | 2018-06-04 02:48:08  | 31.0  |
| BR-1905  | 4520-1  | temperature  | Celsius  | 2018-06-04 02:48:02  | 31.0  |

Regularize a series with a step-like interpolation function:

SELECT entity.label AS "asset", entity.tags.model AS "model",
  metric, metric.units AS "units",
  date_format(time, 'yyyy-MM-dd HH:mm:ss', 'US/Pacific') AS "date", value
  FROM "temperature"
WHERE entity = 'br-1905'
  AND datetime >= '2018-06-01T00:00:00Z'
WITH INTERPOLATE(15 SECOND, PREVIOUS)
ORDER BY datetime DESC
  LIMIT 5
| asset    | model   | metric       | units    | date                 | value |
|----------|---------|--------------|----------|----------------------|-------|
| BR-1905  | 4520-1  | temperature  | Celsius  | 2018-06-04 02:49:00  | 25.0  |
| BR-1905  | 4520-1  | temperature  | Celsius  | 2018-06-04 02:48:45  | 20.0  |
| BR-1905  | 4520-1  | temperature  | Celsius  | 2018-06-04 02:48:30  | 20.0  |
| BR-1905  | 4520-1  | temperature  | Celsius  | 2018-06-04 02:48:15  | 20.0  |
| BR-1905  | 4520-1  | temperature  | Celsius  | 2018-06-04 02:48:00  | 30.0  |

Review the SQL syntax and experiment by executing custom queries based on the provided examples.

Continue to Part 6: Alerting.
