Monitoring Metrics using Rule Engine

Rule Engine can monitor ATSD metrics to raise alerts in case of abnormal deviations.

For example:

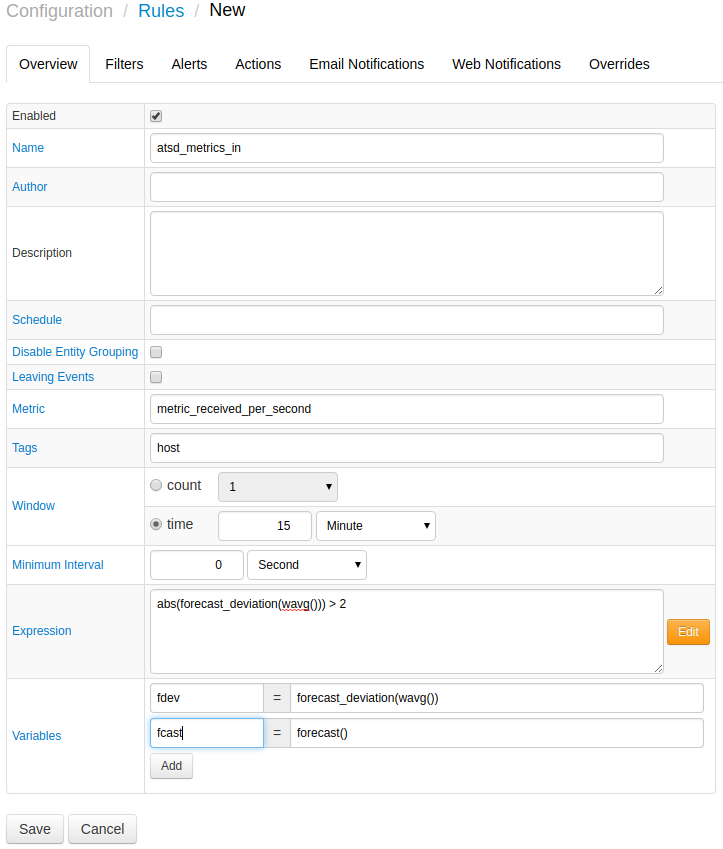

Monitoring the metric_received_per_second metric can be done based on its forecast. In the example below, a forecast is generated for the  metric_received_per_second metric using the built-in Forecasting tool. Based on the forecast a rule is created with the following expression:

abs(forecast_deviation(wavg())) > 2

This rule raises an alert if the absolute forecast deviates from the 15 minute weighted average by more than 2 standard deviations.

Email notifications can be setup for alerts delivered when the rule is triggered.

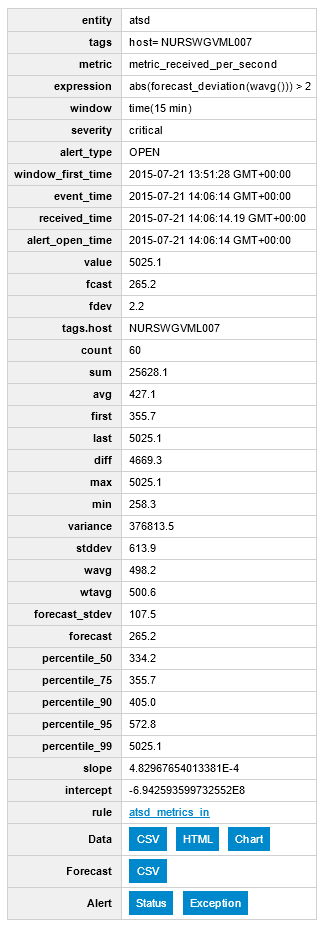

Below is an example email alert.
