Standard Queue Type Example

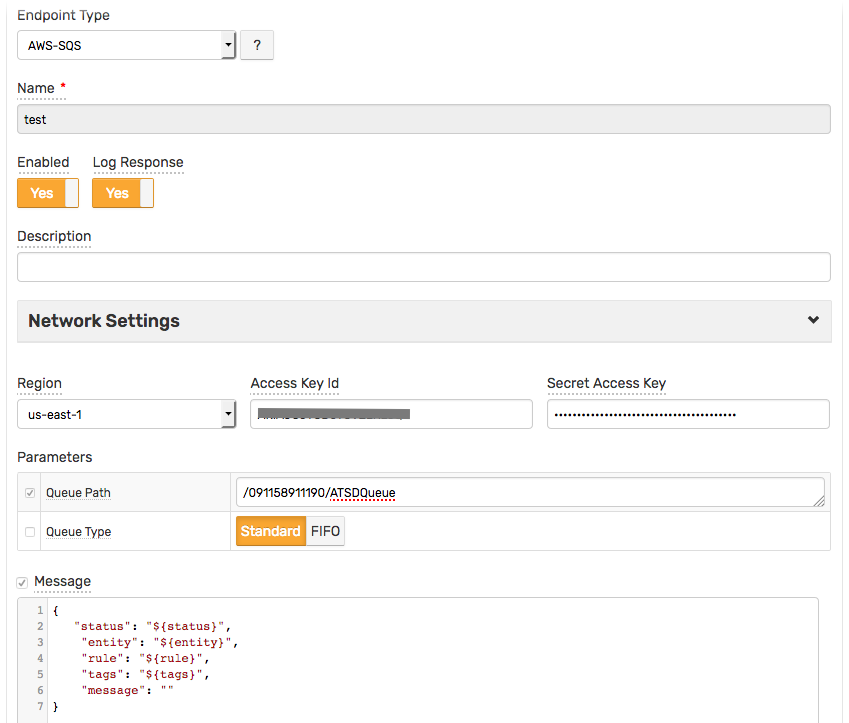

Create a AWS SQS notification with Queue Type = Standard, for example:

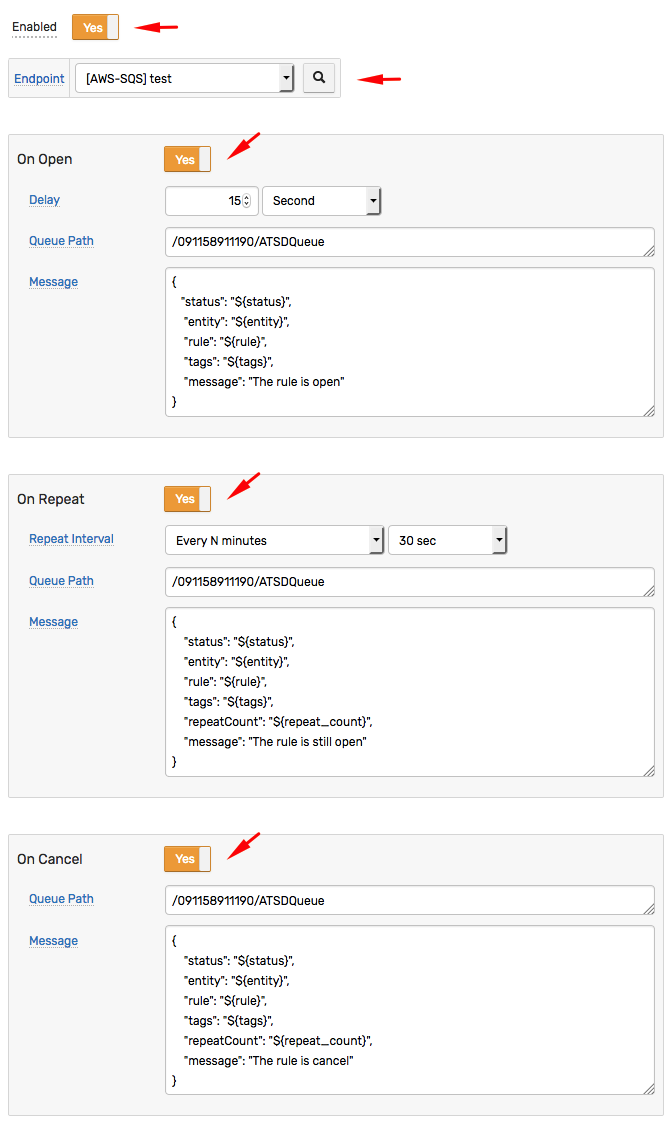

Create a new rule and open the Webhooks tab.

Select [AWS-SQS] test from the Endpoint drop-down.

Enable the OPEN, REPEAT, and CANCEL triggers.

Customize the alert messages using placeholders as necessary, for example:

  • OPEN
       {
          "status": "${status}",
           "entity": "${entity}",
           "rule": "${rule}",
           "tags": "${tags}",
           "message": "The rule is open"
       }
  • REPEAT
       {
           "status": "${status}",
           "entity": "${entity}",
           "rule": "${rule}",
           "tags": "${tags}",
           "repeatCount": "${repeat_count}",
           "message": "The rule is still open"
       }
  • CANCEL
       {
           "status": "${status}",
           "entity": "${entity}",
           "rule": "${rule}",
           "tags": "${tags}",
           "repeatCount": "${repeat_count}",
           "message": "The rule is cancel"
       }

  • Click Save to save the rule.

  • The rule creates new windows when new commands are received by the database.

It may take a few seconds for the first commands to arrive and to trigger the notifications. You can open and refresh the Alerts > Open Alerts page to verify that an alert is open for your rule.

Test

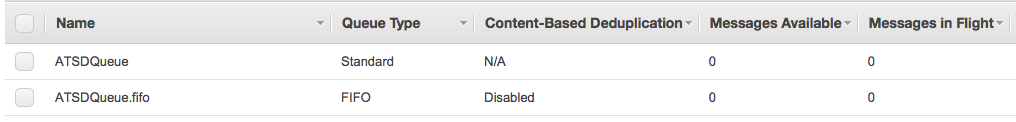

The AWS SQS Queues:

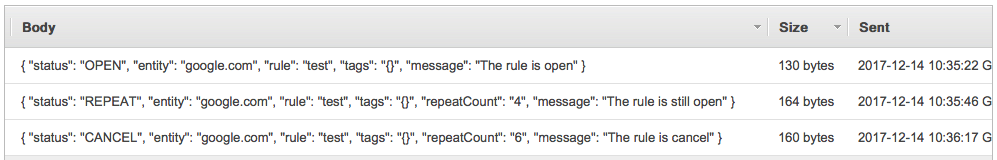

Notifications examples

Queue

Messages
