Grouping

Overview

Incoming commands are assigned to in-memory windows based on the grouping key which consists of the following field values:

  • Data Type: series, message, or property
  • Metric Name
  • Entity Name
  • Command Tags

Commands with equal grouping keys are assigned to the same window.

The Data Type and Metric Name fields are mandatory parts of the key whereas grouping by entity and tags is optional and may be configured for each rule separately.

Tag Grouping

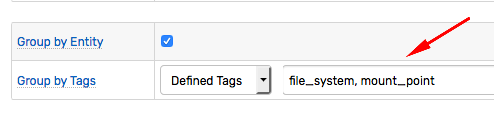

For series commands, default grouping is set by the entity and all tags. The list of grouping tags can be adjusted by enumerating them on the 'Overview' tab.

For message and property commands, default grouping by tags is disabled to avoid creating too many windows in the application memory.

Entity Grouping

Entity grouping can be disabled to apply an aggregate function to data coming from multiple entities that matched certain filters, for example, to calculate an average for all matching entities.

Examples

Assuming that incoming data is represented with the three series commands shown here, the examples below illustrate the effect of group settings on window formations.

Data Type Metric Entity Tags
series m1 e1 t1=v1 t2=v2
series m1 e1 t1=v1 t2=v3
series m1 e3 t1=v4 t2=v3
series e:e1 t:t1=v1 t:t2=v2 m:m1=80
series e:e1 t:t1=v1 t:t2=v3 m:m1=10
series e:e3 t:t1=v4 t:t2=v3 m:m1=50

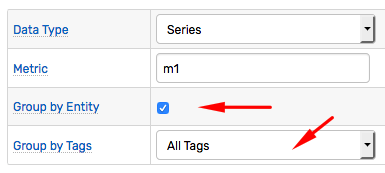

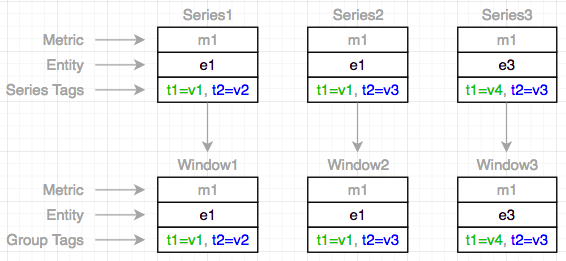

Group By Entity and All Tags

  • Group by series type, m1 metric.
  • Group by entity.
  • Group by all tags (t1, t2).

Data Type Metric Entity Tags Grouping Key
series m1 e1 t1=v1 t2=v2 series-m1-e1-t1=v1-t2=v2
series m1 e1 t1=v1 t2=v3 series-m1-e1-t1=v1-t2=v3
series m1 e3 t1=v4 t2=v3 series-m1-e3-t1=v4-t2=v3

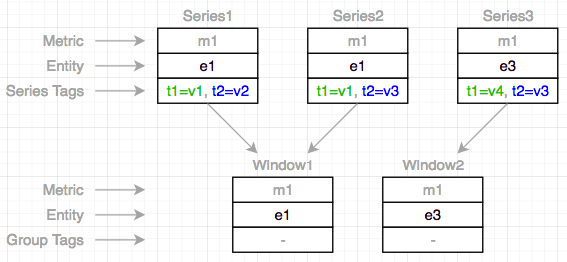

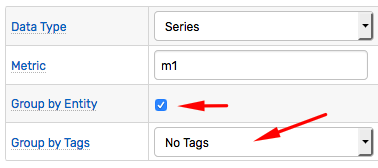

Group By Entity

  • Group by series type, m1 metric.
  • Group by entity.
  • Do not group by any tags.

Data Type Metric Entity Tags Grouping Key
series m1 e1 t1=v1 t2=v2 series-m1-e1
series m1 e1 t1=v1 t2=v3 series-m1-e1
series m1 e3 t1=v4 t2=v3 series-m1-e3

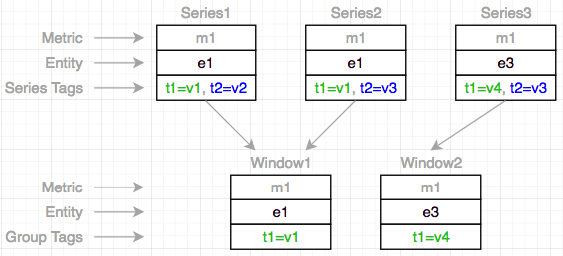

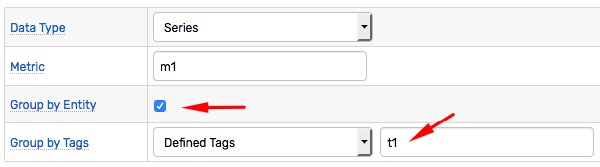

Group By Entity and Tag t1

  • Group by series type, m1 metric.
  • Group by entity.
  • Group by one of the tags (t1).

Data Type Metric Entity Tags Grouping Key
series m1 e1 t1=v1 t2=v2 series-m1-e1-t1=v1
series m1 e1 t1=v1 t2=v3 series-m1-e1-t1=v1
series m1 e3 t1=v4 t2=v3 series-m1-e3-t1=v4

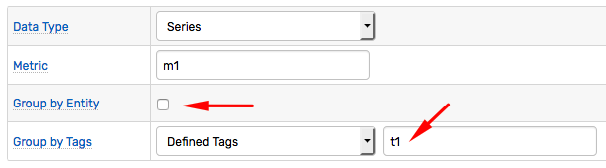

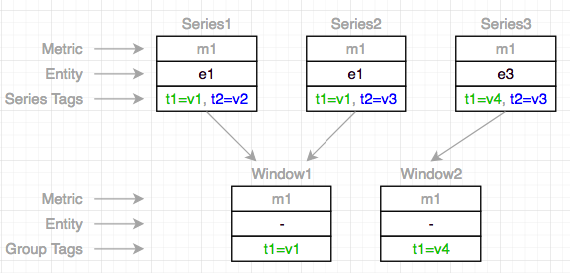

Group By Tag t1

  • Group by series type, m1 metric.
  • Do not group by entity.
  • Group by one of the tags (t1).

Data Type Metric Entity Tags Grouping Key
series m1 e1 t1=v1 t2=v2 series-m1-t1=v1
series m1 e1 t1=v1 t2=v3 series-m1-t1=v1
series m1 e3 t1=v4 t2=v3 series-m1-t1=v4

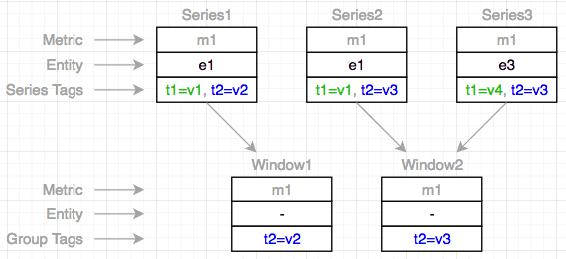

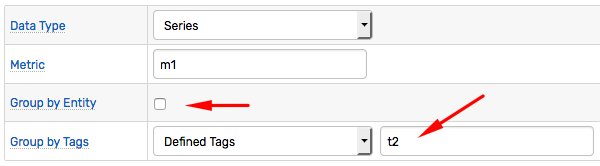

Group By Tag t2

  • Group by series type, m1 metric.
  • Do not group by entity.
  • Group by one of the tags (t2).

Data Type Metric Entity Tags Grouping Key
series m1 e1 t1=v1 t2=v2 series-m1-t2=v2
series m1 e1 t1=v1 t2=v3 series-m1-t2=v3
series m1 e3 t1=v4 t2=v3 series-m1-t2=v3
