Command Replication

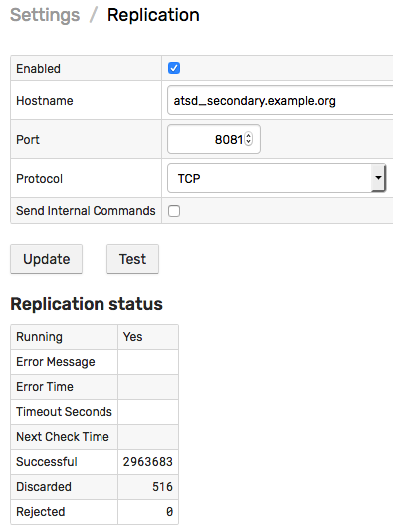

To copy the received data commands to another ATSD instance, configure the destination on the Settings > Replication page.

Protocols

Supported transport protocols:

  • UDP
  • TCP
  • HTTPS

When Send Internal Commands is disabled, monitoring data generated by the atsd entity are not sent to the target ATSD server.

Permissions

Permission checks are disabled for UPD and TCP protocols.

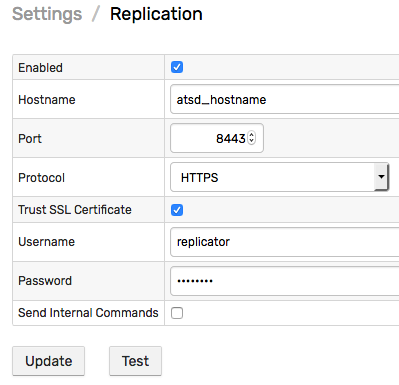

To send commands via HTTPS, specify credentials for a user account with the following roles and permissions:

  • API_DATA_WRITE Role.
  • API_META_WRITE Role.
  • All Entities: Write permission.

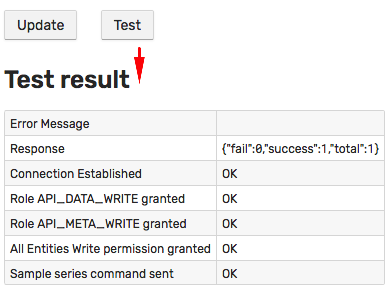

The permissions are checked when testing.

Error Handling

The replicated commands are not resent in case of network or other errors.

Monitoring

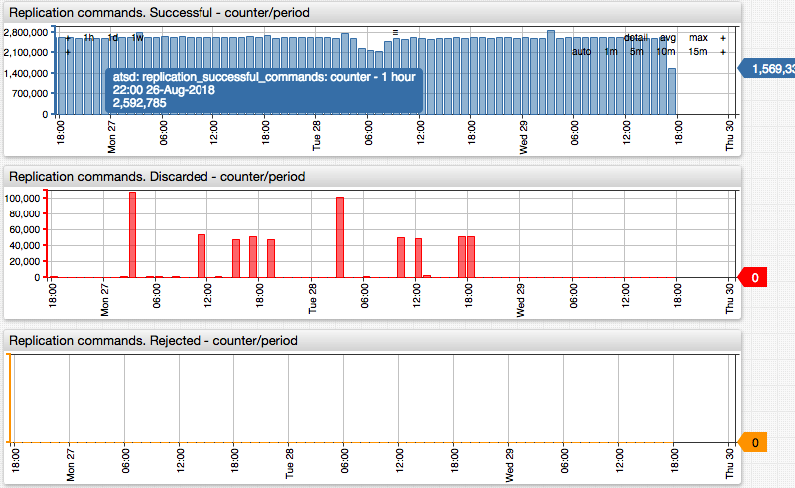

Replication status can be monitored with the built-in metrics generated by entity atsd:

  • replication_successful_commands
  • replication_discarded_commands
  • replication_rejected_commands

Note

Replication metrics are incrementing integer counters which are reset on database restart.

Portal Configuration:

[configuration]
  title = ATSD Replication Status
  offset-right = 50
  height-units = 4
  width-units = 1
  timespan = 24 hour
  entity = atsd
  period = 5 minute
  statistics = counter
  mode = column
  server-aggregate = true
  display-panels = true
  expand-panels = true

[group]
  widgets-per-row = 1

[widget]
  type = chart
  title = Replication commands. Successful - counter/period

  [series]
    metric = replication_successful_commands

[widget]
  type = chart
  title = Replication commands. Discarded - counter/period
  [series]
    metric = replication_discarded_commands
    color = red

[widget]
  type = chart
  title = Replication commands. Rejected - counter/period
  [series]
    metric = replication_rejected_commands
    color = orange

[widget]
  type = chart
  title = Commands In - Per Second - Period Average
  statistics = avg
  mode = line
  label-format = javascript:keepBefore(metric, '_')

  [series]
    metric = metric_received_per_second

  [series]
    metric = property_received_per_second

  [series]
    metric = message_received_per_second
